434 Upgrade and Maintenance Manual CX2550/60/70 M4
12.3.2.3 Disconnecting the cables from the Omni-Path PHY card
Ê Remove the riser module, see section "Removing the riser module" on
page 58.
Ê Remove the controller from the riser module, see section "Removing a
controller from the riser module" on page 123.

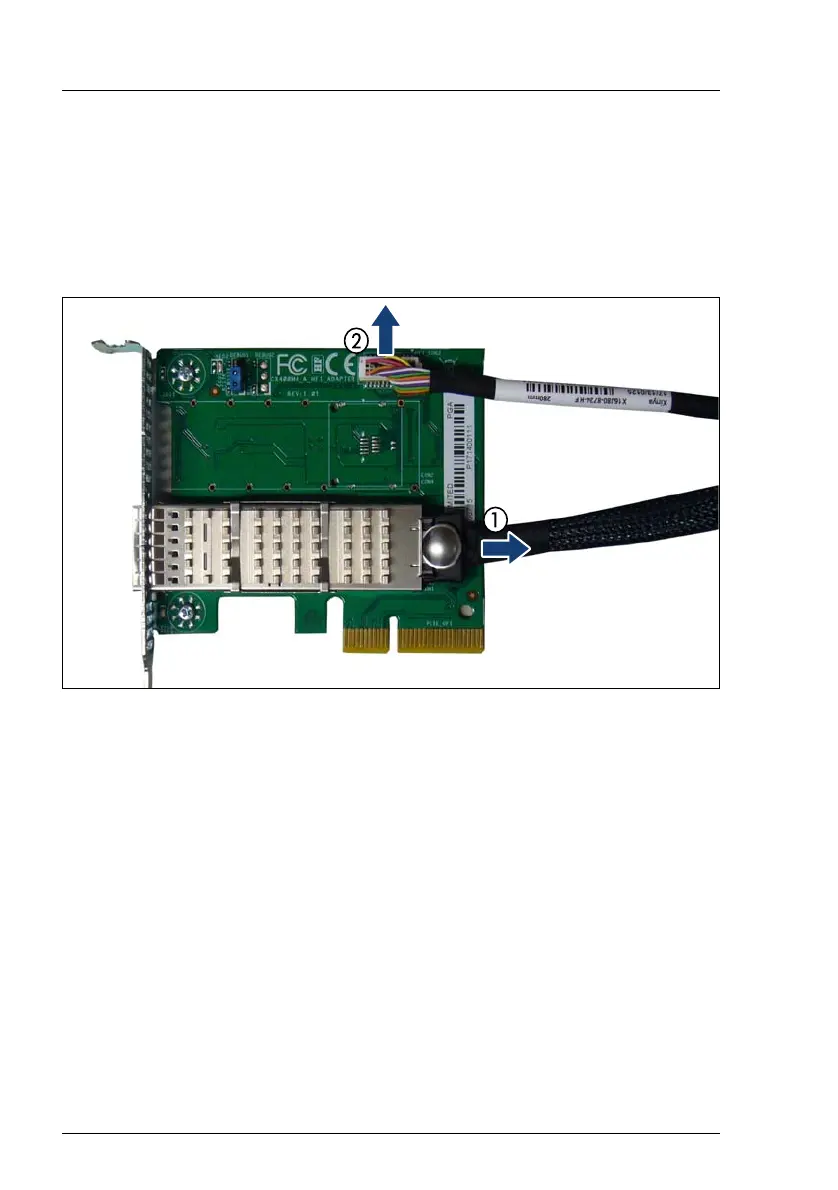

Figure 330: Disconnecting the cables from the Omni-Path PHY card
Ê Disconnect the plugs of the Omni-Path PHY card signal cable from the
Omni-Path PHY card by unlocking the latches of the Omni-Path PHY card
signal cable (1).
Ê Disconnect the Omni-Path PHY card sideband cable from the Omni-Path
PHY card (2).
Ê Install the riser module, see section "Installing the riser module" on page 55.
