162 Upgrade and Maintenance Manual CX2550/60/70 M4
Expansion cards and OCP mezzanine cards
6.6.2.2 Removing the OCP mezzanine card

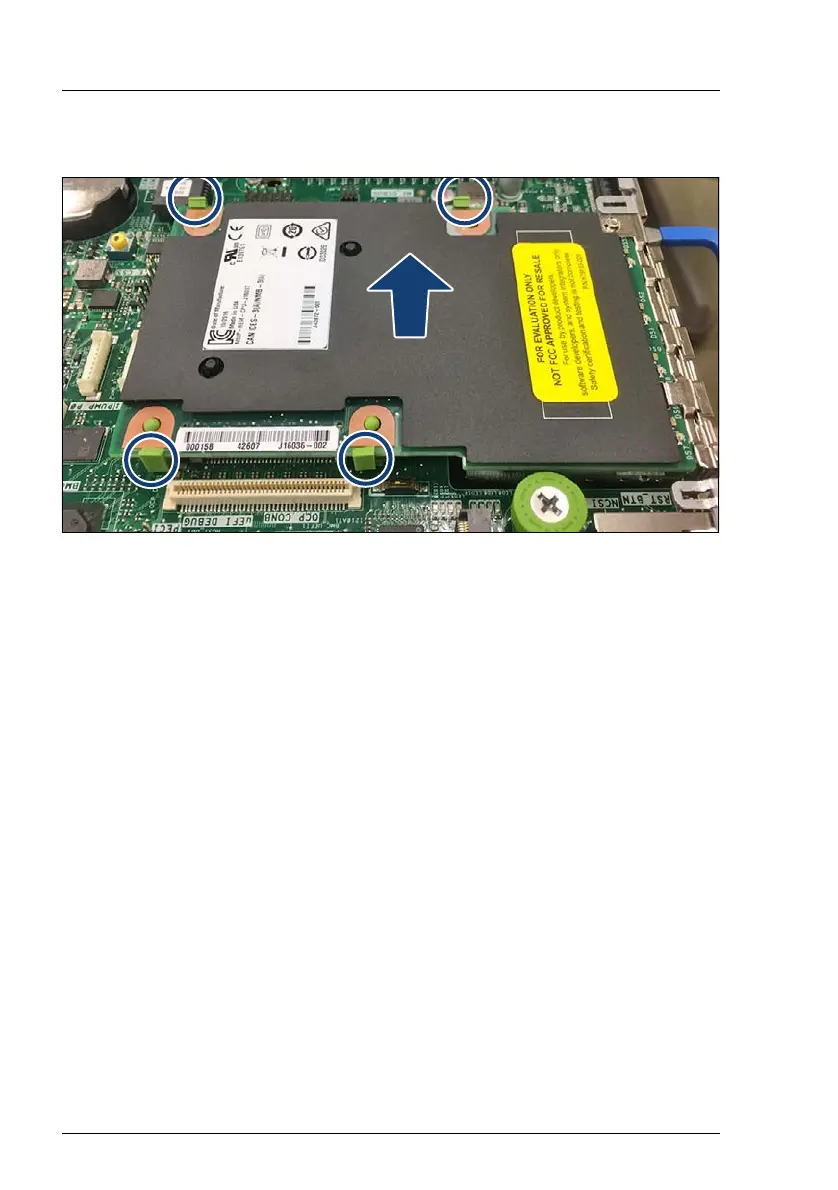

Figure 63: Removing the OCP mezzanine card
Ê Disengage the OCP mezzanine card from the hooks (see circle) and remove
it from the guide pins.
Ê "Installing the OCP dummy module" on page 62 (if applicable)
6.6.2.3 Concluding steps
Perform the following procedures:
Ê Install the riser modules, see section "Installing the riser module" on
page 55.
Ê "Installing the server node in the server enclosure" on page 67
Ê Connect all external cables.
Ê "Controls and indicators on the server node" on page 448
