248 Upgrade and Maintenance Manual CX2550/60/70 M4
8.3.7.1 CPU / RAM loop type 1: Installing the quick connector holder

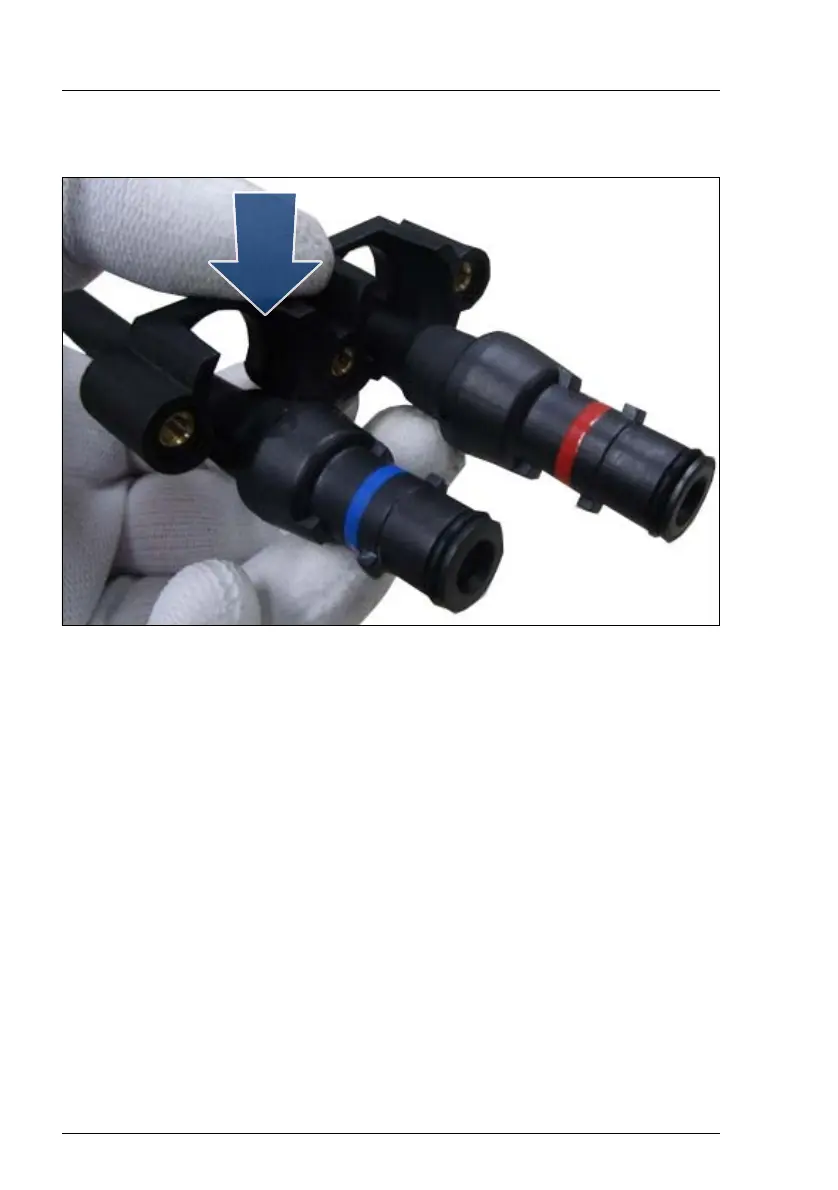

Figure 148: Installing the quick connector holder
Ê Attach the top side of the quick connector holder to the CPU cooler as
shown.
V CAUTION!
Attach the quick connector holder to the CPU cooler so that the
red tube is on the right side when viewed from the front.
