CX2550/60/70 M4 Upgrade and Maintenance Manual 247

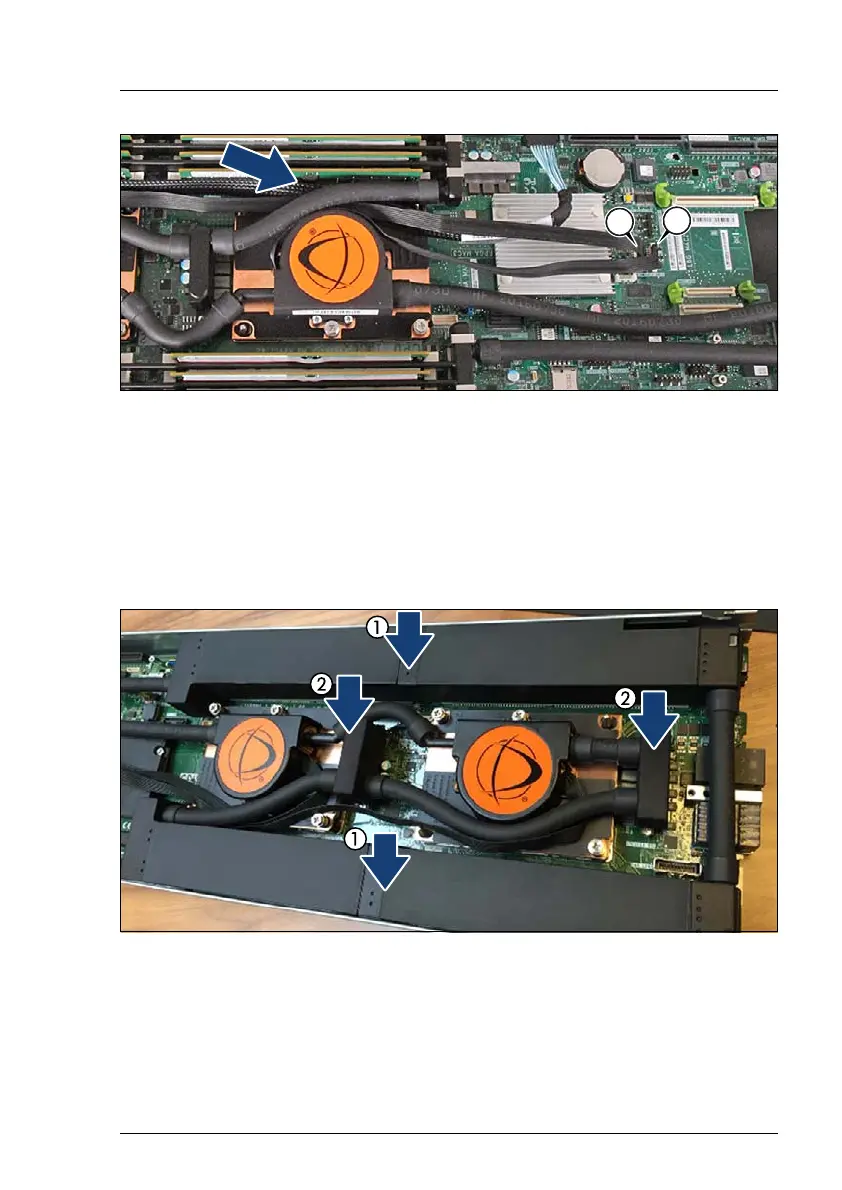

Figure 146: Connecting the LC power cables
1 Power connector for LC pump 1 (CPU1)
2 Power connector for LC pump 2 (CPU2)
Ê Run the LC power cables under the tube (see arrow).
Ê Connect the LC power cable to the system board.
Ê Make sure that the power connector is connected properly.
Figure 147: Installing the DIMM covers and the VRM LC heat sink covers
Ê Install the memory covers onto the DIMM modules (1).
Ê Install the VRM LC heat sink covers.
I There are different procedures of removing the flexible tubes for
CX2550 M4 / CX2560 M4 and CX2570 M4.
