Fujitsu PRIMERGY CX2550 M4

246 Upgrade and Maintenance Manual CX2550/60/70 M4
Processor (CPU)

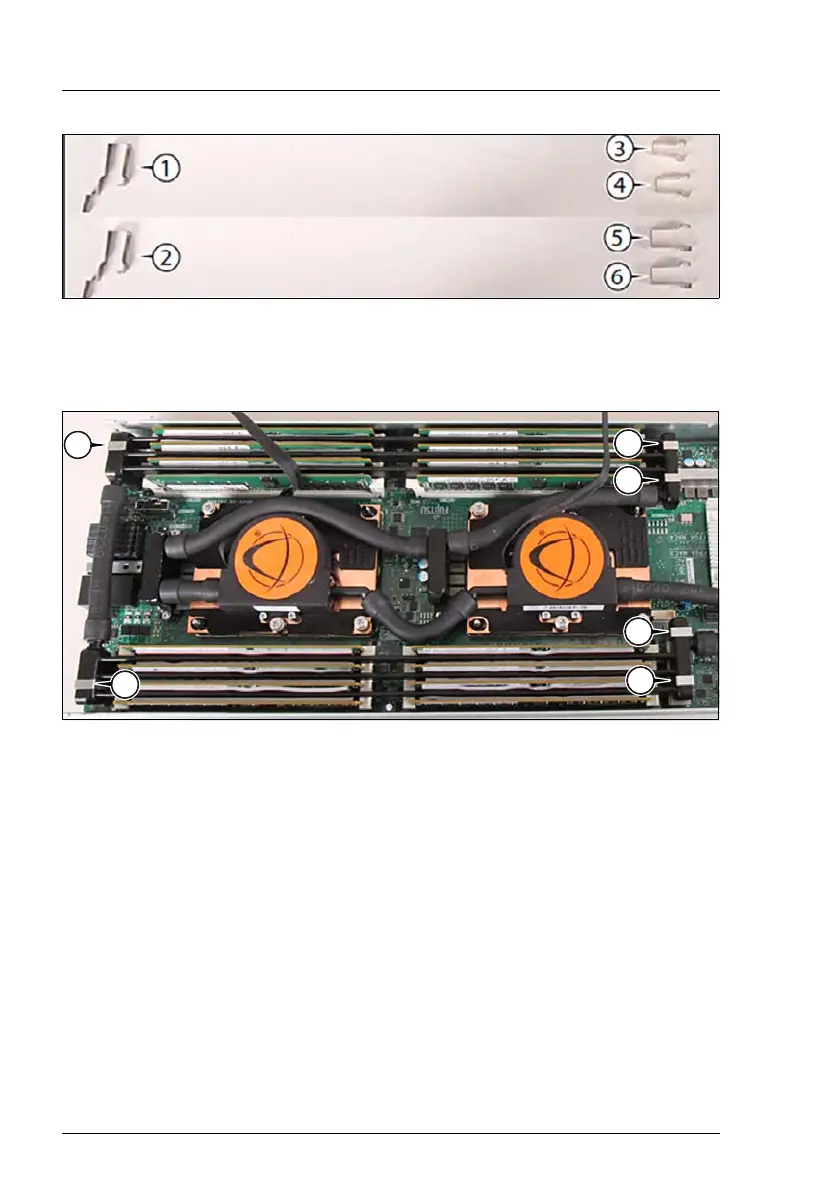

Figure 144: Memory module LC heat sink clamps
1 - 6 Clamps for fixing the memory module LC heat sink tubes on the system
board.
Figure 145: Fastening the memory module LC heat sinks
Ê Fix the DIMM module heat sinks with the clamps as shown.
Use the clamps according to their numbering, and follow the orientation of
the clamps in figure "Memory module LC heat sink clamps" on page 246.
1
2
3
4
5
6
