4.4 Removing the GPGPU / SXM2 extension
tray
I When you use CX2570(SXM) M4 (liquid cooling type 2), perform the
following steps:

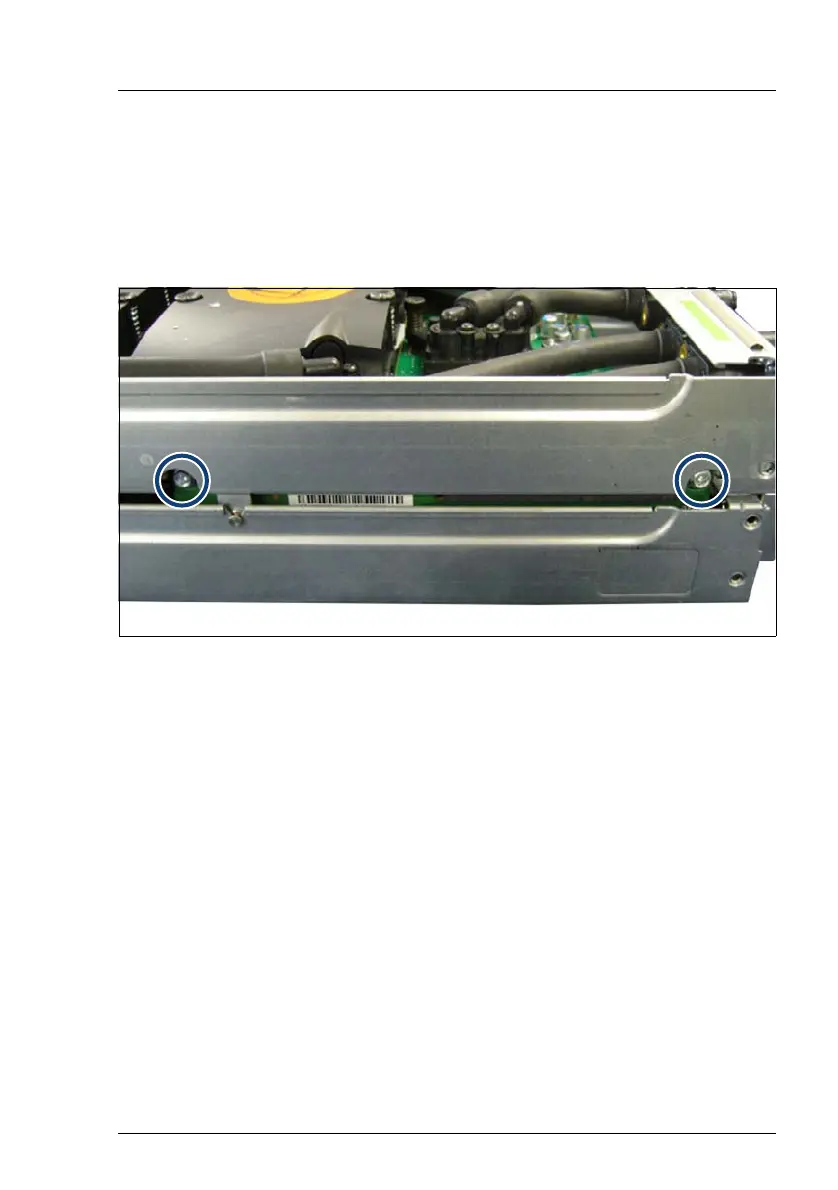

Figure 3: Removing the SXM2 extension tray
– Remove the screws of the SXM riser card (L) type 2 (see circles).
