CX2550/60/70 M4 Upgrade and Maintenance Manual 439
12.3.3.3 Connecting the Omni-Path PHY card sideband cable to the
system board

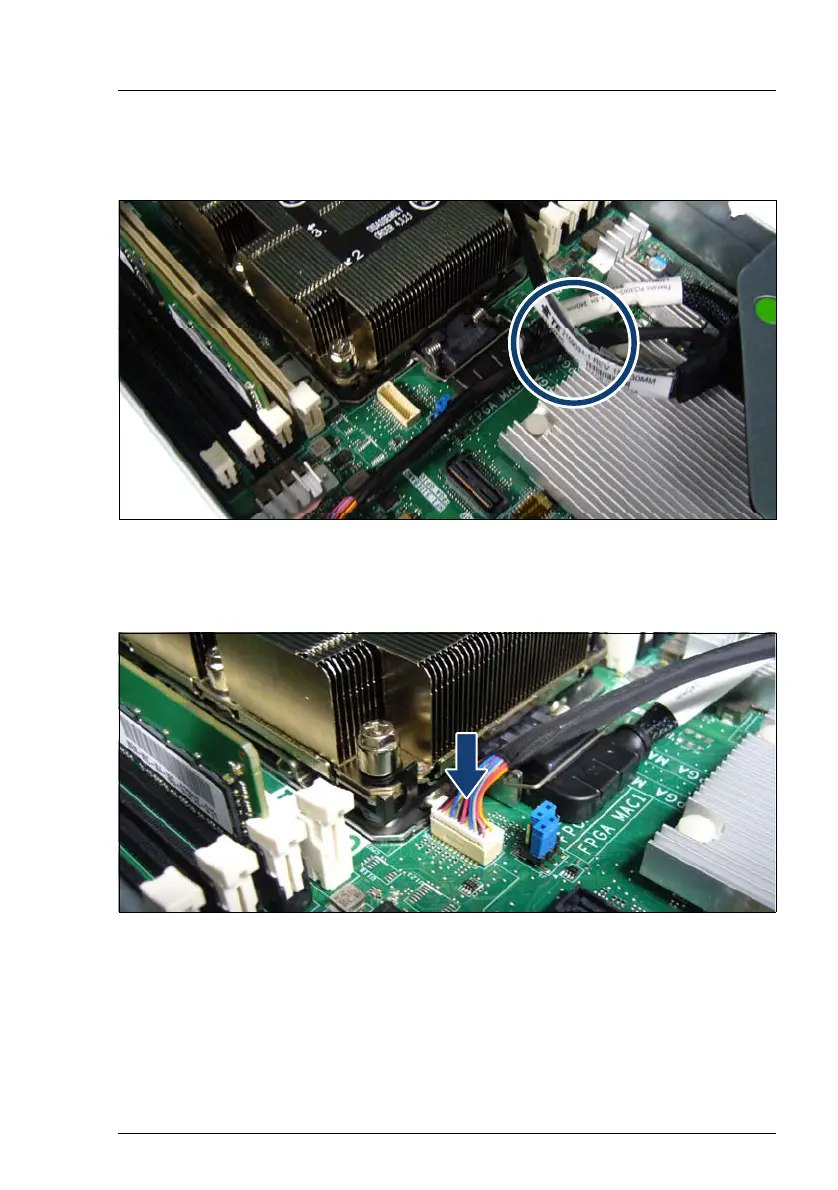

Figure 337: Routing the Omni-Path PHY card sideband cable under the SATA cable
Ê Route the Omni-Path PHY card sideband cable under the SATA cable (see
circle).
Figure 338: Connecting the Omni-Path PHY card sideband cable to the system board
Ê Connect the Omni-Path PHY card sideband cable to the system board.
