CX2550/60/70 M4 Upgrade and Maintenance Manual 253

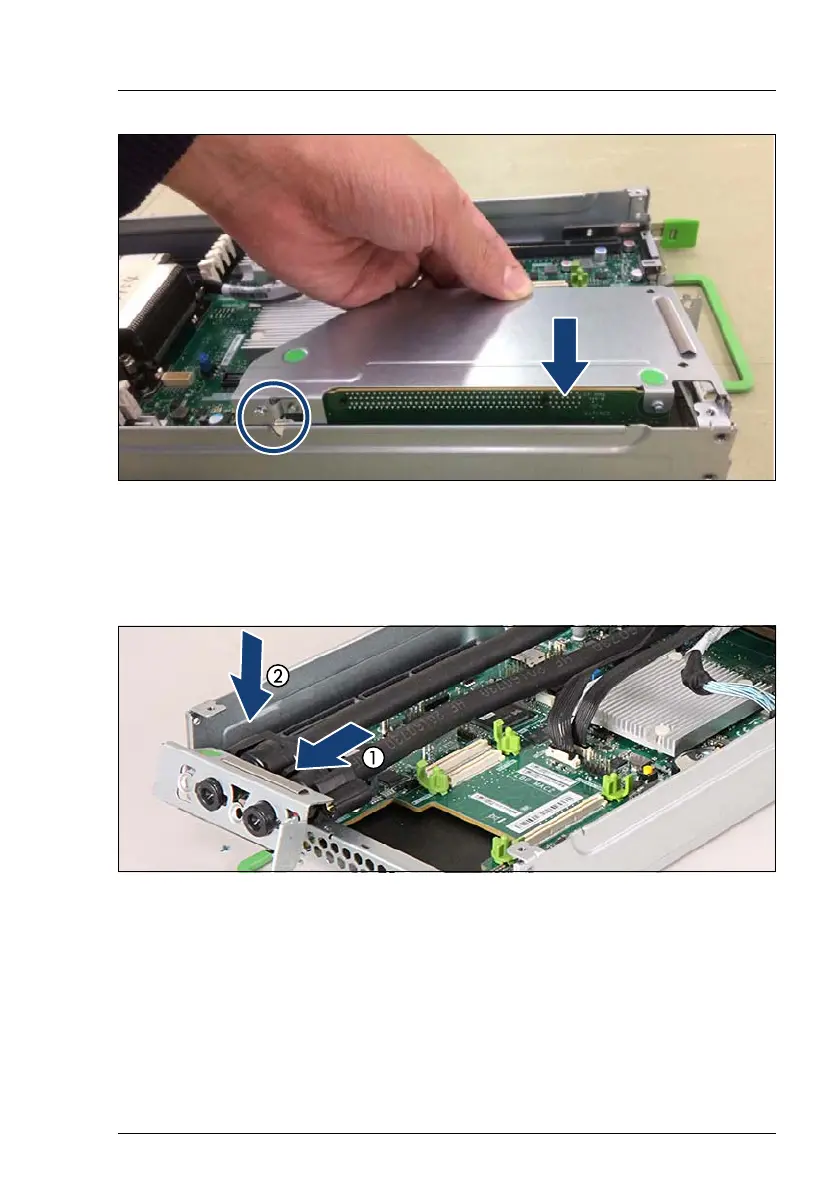

Figure 155: Installing the riser module (A)
Ê Insert the bolt in the chassis recess (see circle).
8.3.7.4 CPU / RAM loop type 1: Installing the flexible tubes (CX2570 M4)
Figure 156: Inserting the flexible tubes
Ê Push both flexible tubes through the holes of the LC bracket (1).
Ê Place the LC bracket onto its place (2).
