CX2550/60/70 M4 Upgrade and Maintenance Manual 235
8.3.5 Installing the CPU type 1

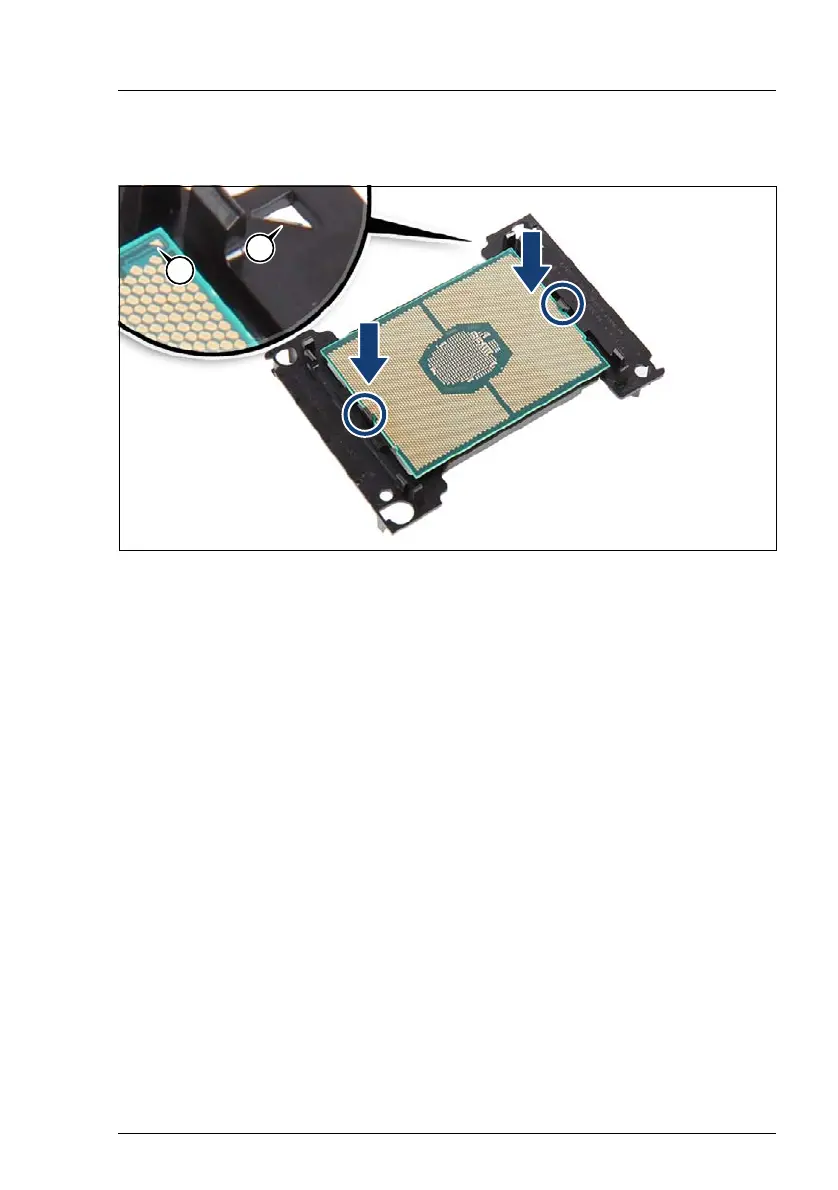

Figure 128: Installing the CPU
Ê Click the CPU into the CPU frame (see arrows). Make sure that the triangle
marks on CPU (A) and on CPU frame (B) are on the same edge.
I Take care of the nose and the recess on each side (see circles).
Ê Make sure that the CPU fits in its place.
Ê Apply the thermal paste, see section "Applying thermal paste" on page 262.
