250 Upgrade and Maintenance Manual CX2550/60/70 M4
8.3.7.2 CPU / RAM loop type 1: Installing the flexible tubes (CX2550 M4
/ CX2560 M4) Type 1

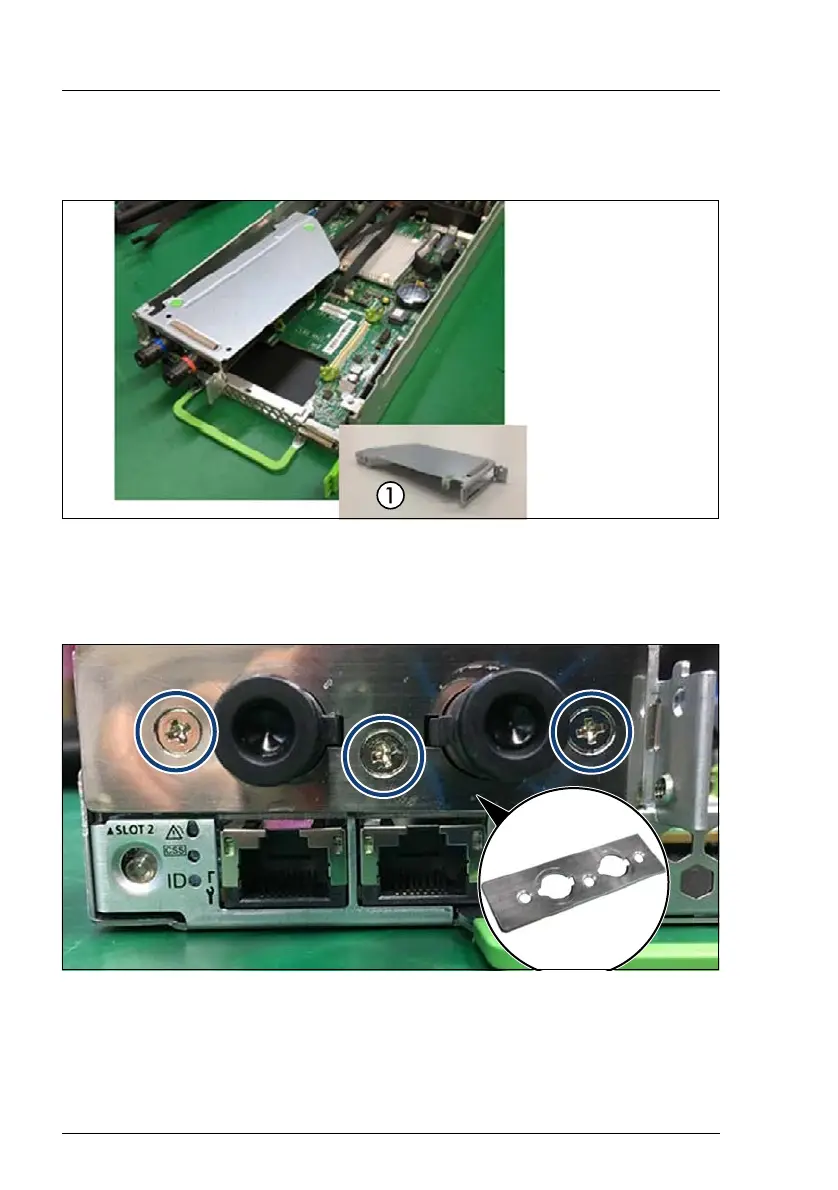

Figure 150: Installing the LC flexible tubes riser
Ê Install the LC riser for CX2550 M4 / CX2560 M4 (1).
Ê Pull both flexible tubes through the recess of the riser.
Figure 151: Installing the LC metal plate
Ê Fix the metal plate (see cut out) with three screws (see circles).
