224 Upgrade and Maintenance Manual CX2550/60/70 M4
Ê "Shutting down the server node" on page 50
Ê If applicable, remove all external cables from the server node.
Ê "Removing the server node from the server enclosure" on page 51
8.3.2 Removing the LC heat sinks

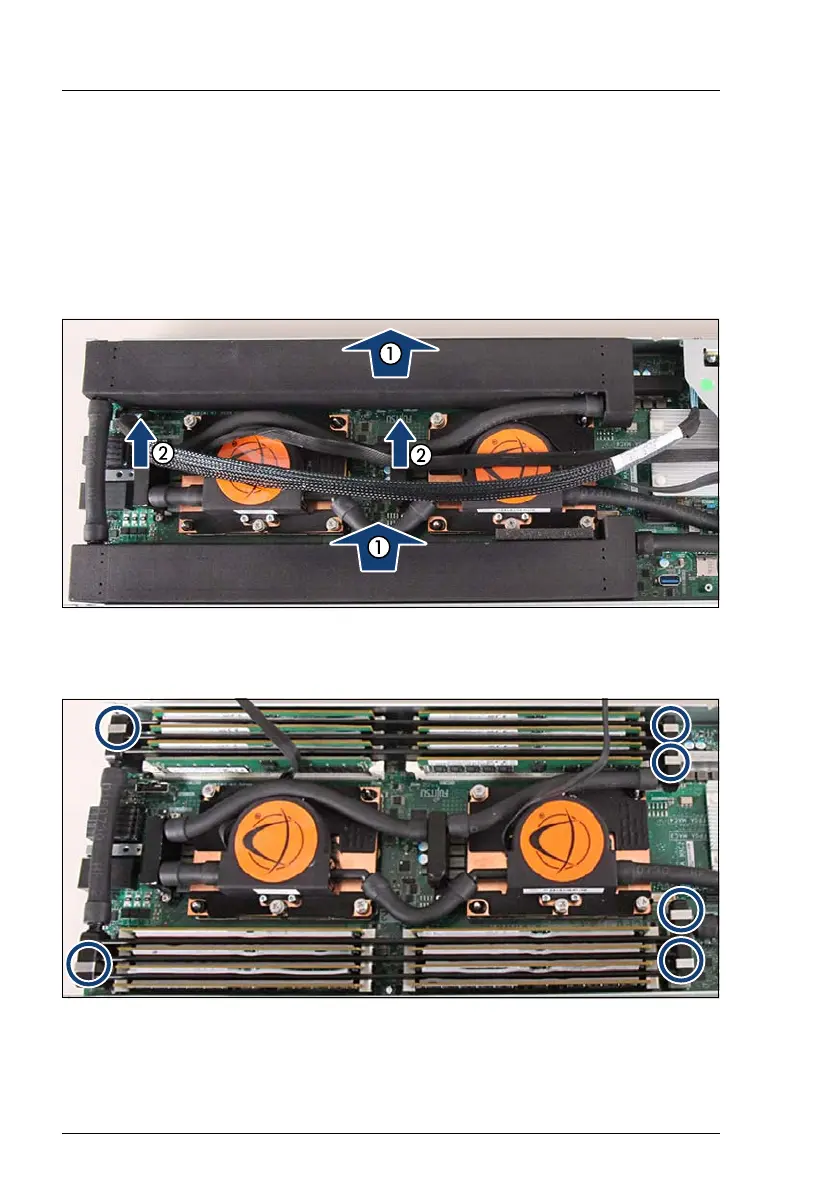

Figure 111: Removing the memory modules covers and VRM heat sink covers
Ê Remove the memory modules covers (1) and the VRM heat sink covers (2).
Figure 112: Removing the memory modules LC heat sink clamps
Ê Remove the memory modules heat sink clamps (see circles).
