Processor (CPU)

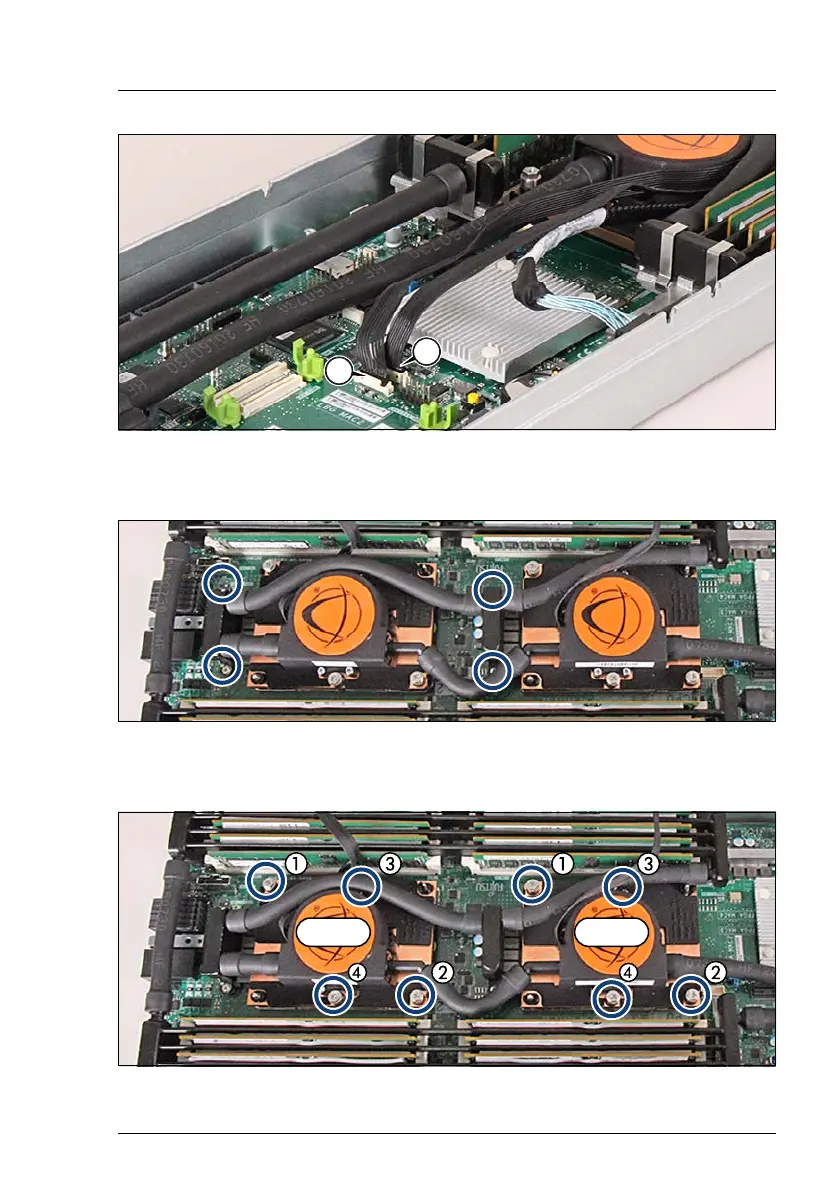

Figure 113: Disconnecting the LC power cables
Ê Disconnect the LC power cables (1), (2).
Figure 114: Removing the LC heat sinks (A)
Ê Remove the screws from the VRM heat sinks (see circles).
Figure 115: Removing the LC heat sinks (B)
1
2
CPU 1CPU 2
