CX2550/60/70 M4 Upgrade and Maintenance Manual 331
Ê Disconnect the GPGPU from the riser card (see arrow).
Ê Lift the GPGPU in a vertical motion out of the chassis.

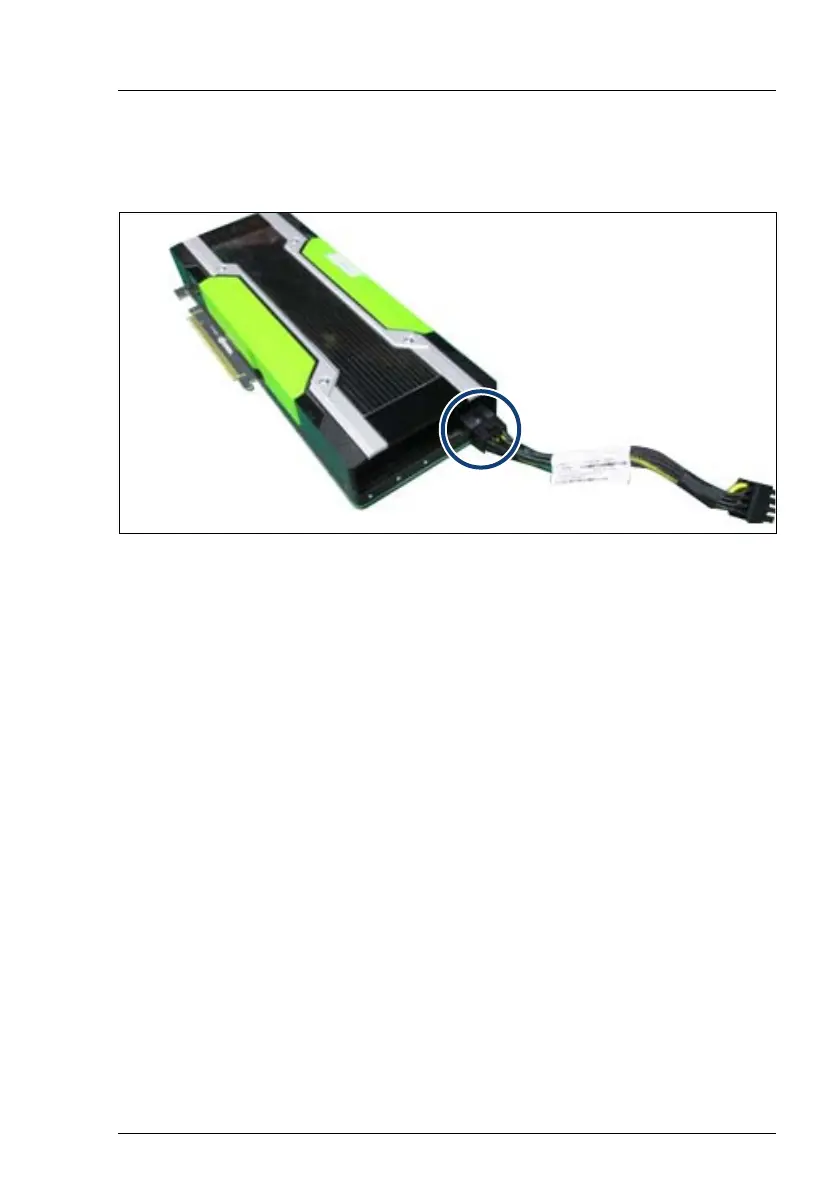

Figure 215: Disconnecting the short power cable from the GPGPU
Ê Disconnect the short power cable from the GPGPU.
10.3.3 Concluding steps
Perform the following procedures:
Ê "Installing the server node in the server enclosure" on page 67
Ê If applicable, connect all external cables to the server node.
Ê "Updating or recovering the system board BIOS and iRMC" on page 77 (if
applicable)
Ê "Controls and indicators on the server node" on page 448
Ê "Enabling SVOM boot watchdog functionality" on page 88
