330 Upgrade and Maintenance Manual CX2550/60/70 M4

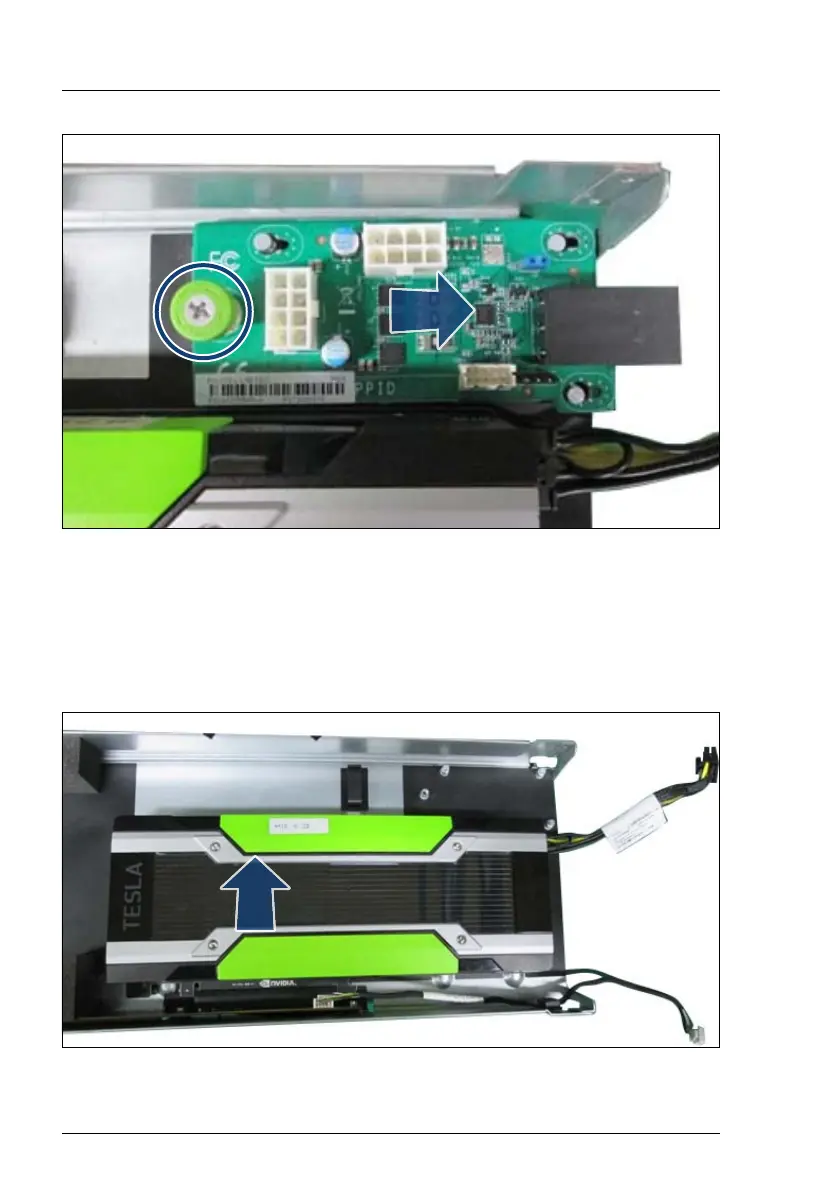

Figure 213: Removing the PIB
Ê Loosen the captive screw (see circle).
Ê Carefully shift the PIB in the direction of the arrow until the plug shell
disengage from the cut-out in the chassis.
Ê Lift the PIB out of the chassis.
Figure 214: Removing the GPGPU from the chassis
