450 Upgrade and Maintenance Manual CX2550/60/70 M4
13.2.2.3 LAN indicators

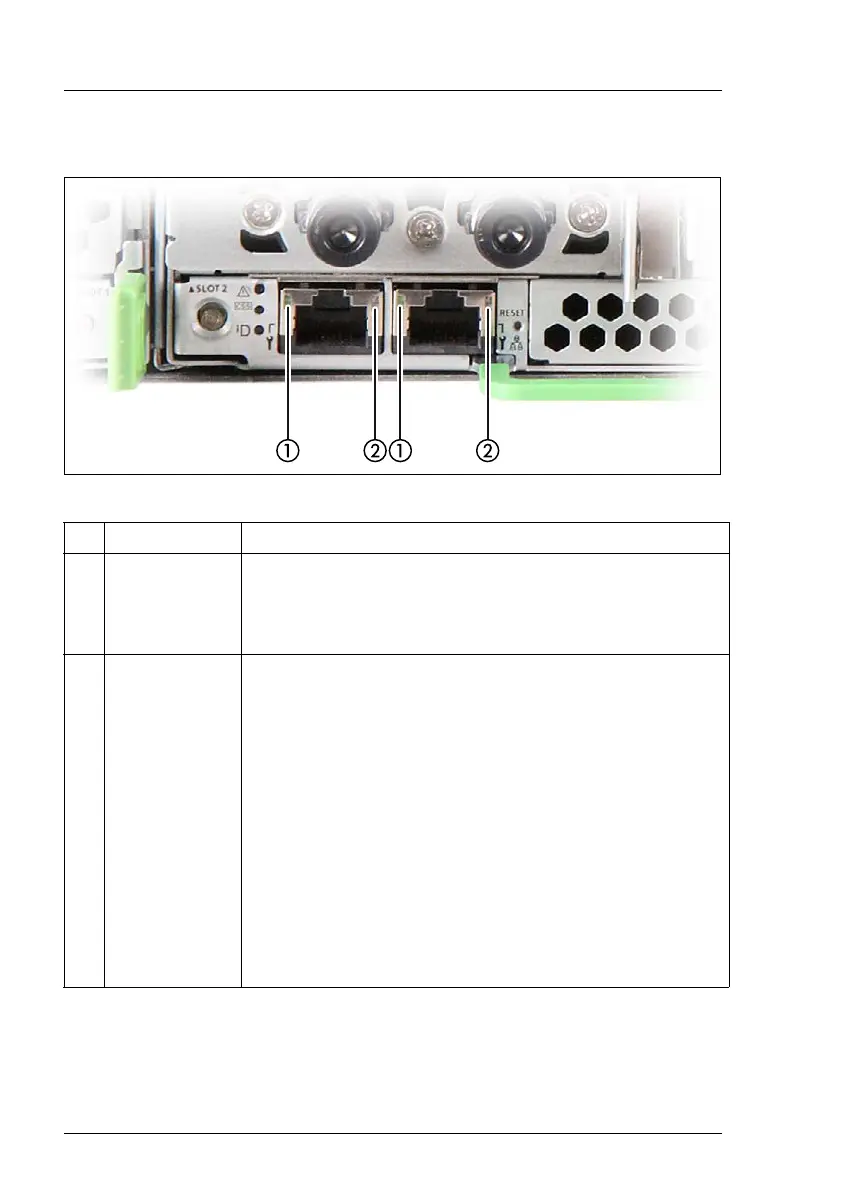

Figure 344: LAN indicators
I Depending on the settings in the BIOS, the Shared LAN connector may
also be used as a Management LAN connector. You will find further
information in the "D3853 BIOS Setup Utility for FUJITSU Server
No Indicator Description
1LAN
link/transfer
Steady green signal when a LAN connection exists.
Remains dark when no LAN connection exists.
Flashes green when LAN transfer takes place.
2 LAN speed Steady orange signal in the event of a LAN transfer rate
of 1 Gbit/s.
Steady green signal in the event of a LAN transfer rate
of 100 Mbit/s.
Remains dark in the event of a LAN transfer rate of
10 Mbit/s.
Flashes (1) in the low power saving mode (EEE: Energy
Efficient Ethernet)
*This is a Function to suppress the power consumption
when the network traffic is a low.
Flashes (2) in the event of a communication negotiation
failure.
