254 Upgrade and Maintenance Manual CX2550/60/70 M4

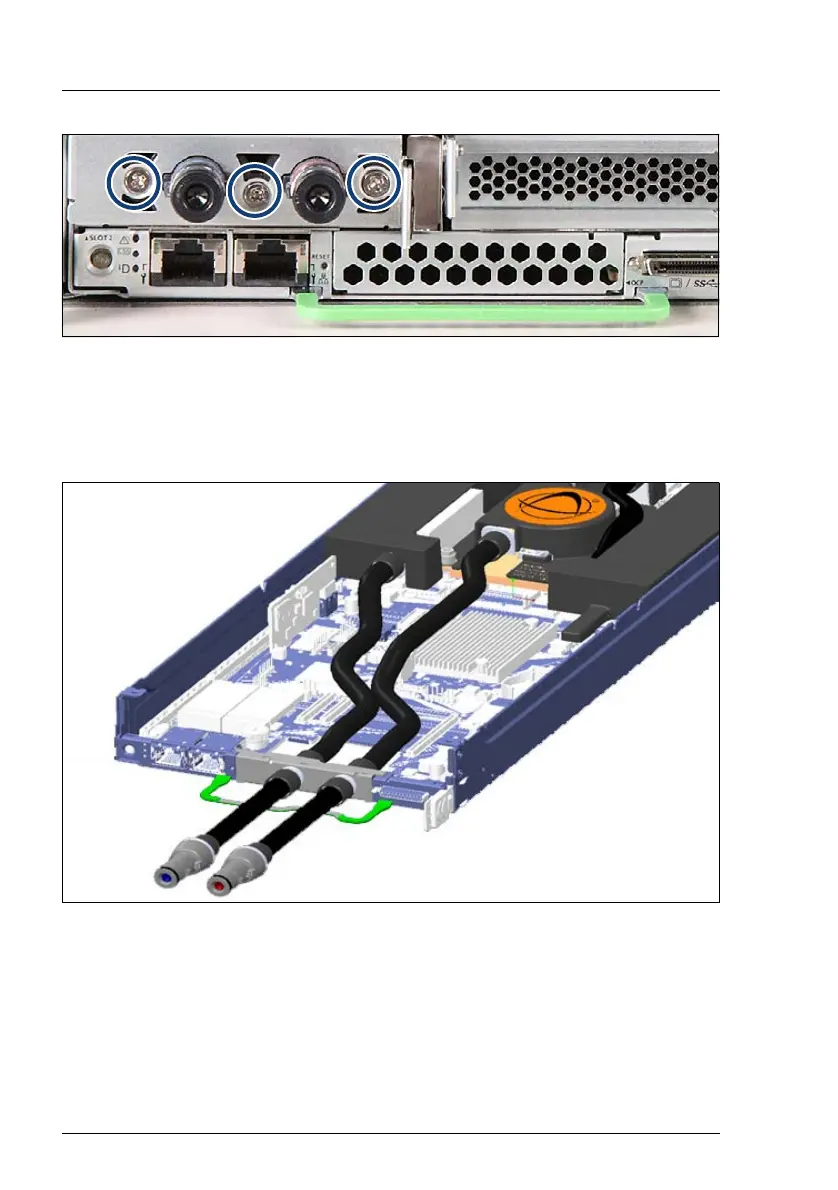

Figure 157: Fastening the LC bracket
Ê Fasten the LC bracket with three screws (see circles).
8.3.7.5 Installing the flexible tubes of the CPU/RAM loop type 2
Figure 158: Inserting the flexible tubes
Ê Install the quick connector of the flexible tubes from the OCP slot area.
