CX2550/60/70
M4
Upgrade and Maintenance Manual
199
Main memory

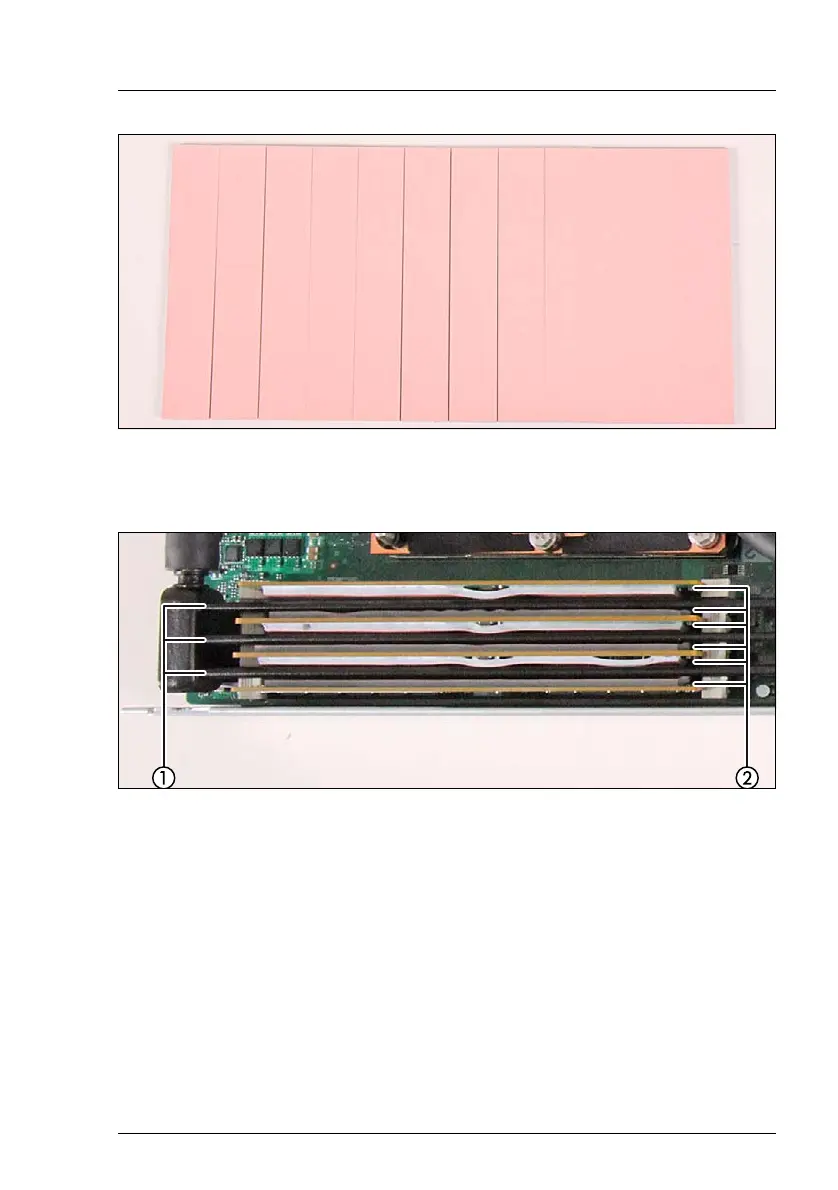

Figure 88: Memory c
ooli
ng pads
7.5.1.1
Adhesive rules for the mem
ory cooling p
ads
Figure 89: Adhesive
rules for the memory c
ooli
ng pads
All sides of the
memory modules that poin
t to a cooling tube (1) must be covered
with a cooling pad (2), see example abov
e.
198
200
