Main memory

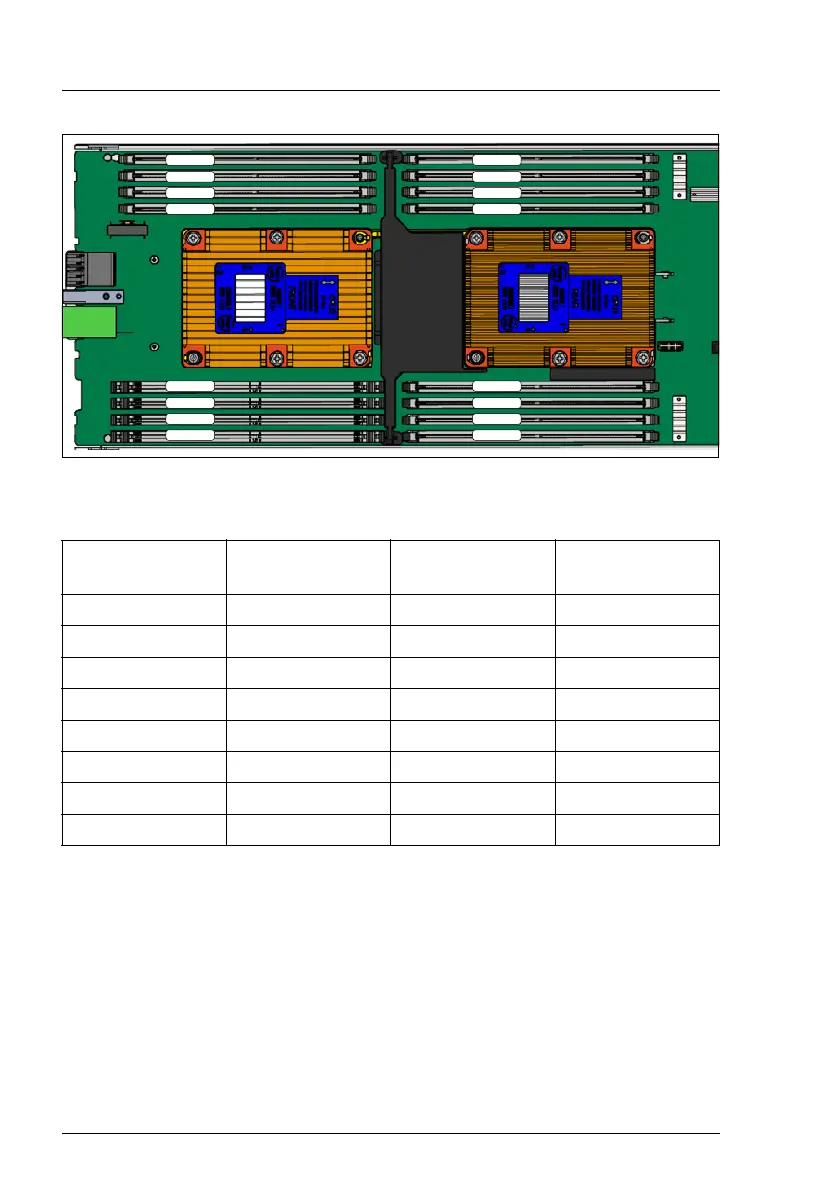

Figure 90: DIMM slots overview
Memory module
Number of
cooling pads
Memory module
Number of
cooling pads
2A 1 cooling pad 2G 1 cooling pad
1A 2 cooling pads 1G 2 cooling pads
1B 2 cooling pads 1H 2 cooling pads
1C 1 cooling pad 1J 1 cooling pad
2D 1 cooling pad 2K 1 cooling pad
1D 2 cooling pads 1K 2 cooling pads
1E 2 cooling pads 1L 2 cooling pads
1F 1 cooling pad 1M 1 cooling pad
DIMM 2G
DIMM 1G
DIMM 1H
DIMM 1J
DIMM 2A
DIMM 1A
DIMM 1B
DIMM 1C
DIMM 1M
DIMM 1L
DIMM 1K
DIMM 2K
DIMM 1F
DIMM 1E
DIMM 1D
DIMM 2D
