228 Upgrade and Maintenance Manual CX2550/60/70 M4

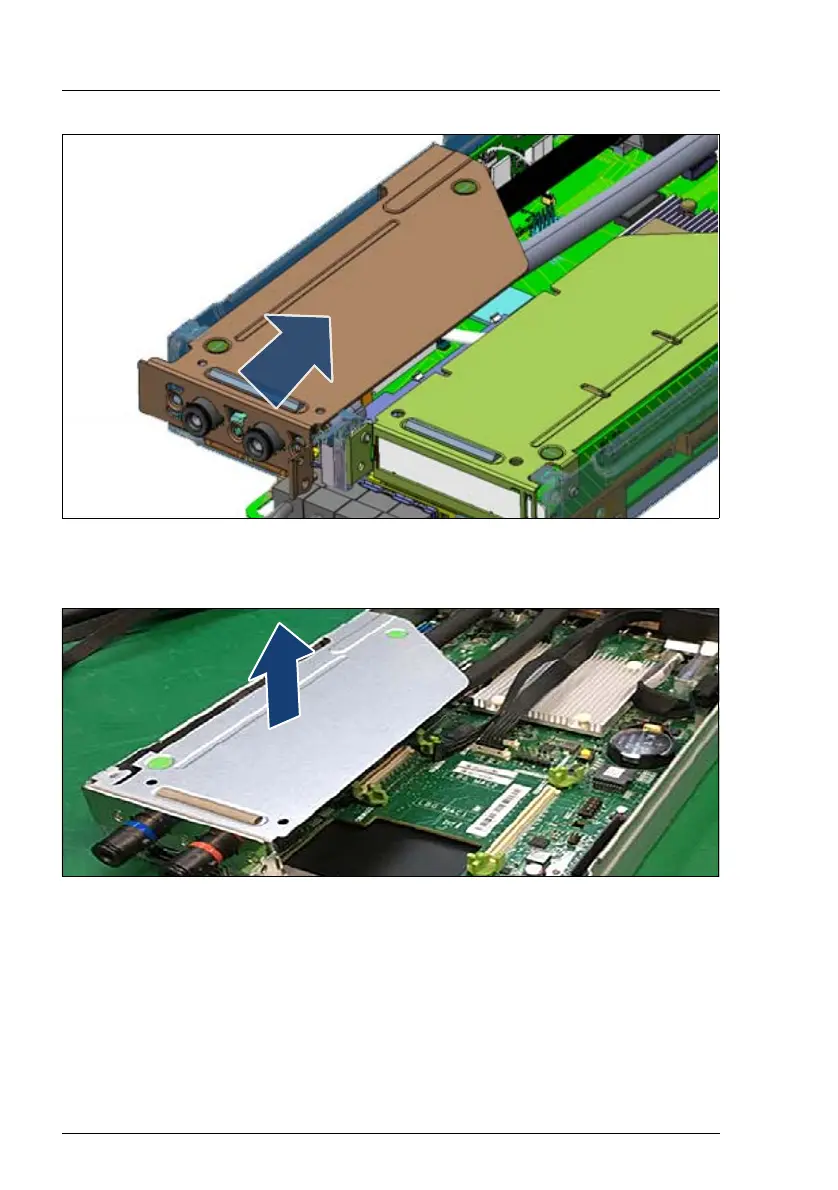

Figure 119: Removing the LC flexible tubes
Ê Pull both flexible tubes through the holes of the LC bracket (see arrow).
Figure 120: Removing the LC flexible tubes riser
Ê Remove the LC flexible tubes riser from the tray.
Ê Pull both flexible tubes from the riser.
