Fujitsu PRIMERGY CX2550 M4

CX2550/60/70 M4 Upgrade and Maintenance Manual 283
System board and components

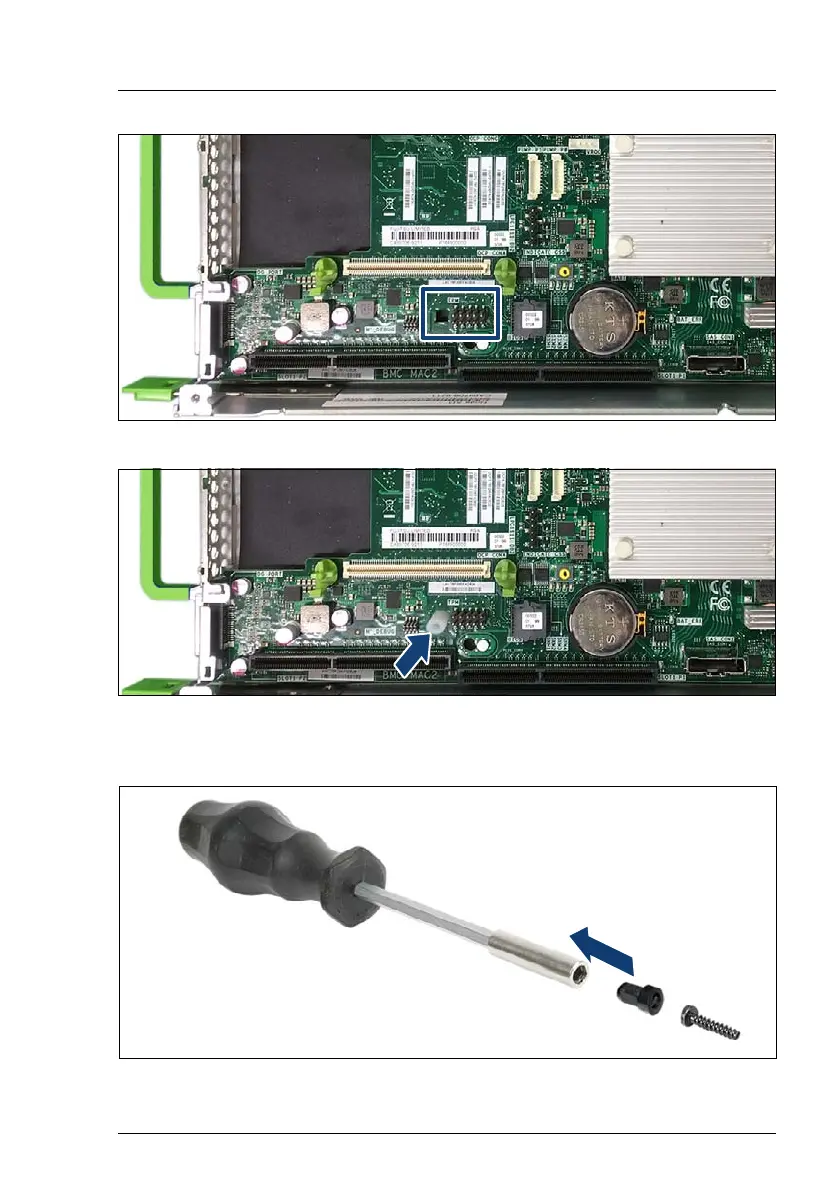

Figure 175: Position on the system board
Figure 176: Inserting the TPM spacer on the system board
Ê Insert the TPM spacer into the hole on the system board.
Figure 177: TPM bit insert
