CX2550/60/70 M4 Upgrade and Maintenance Manual 353

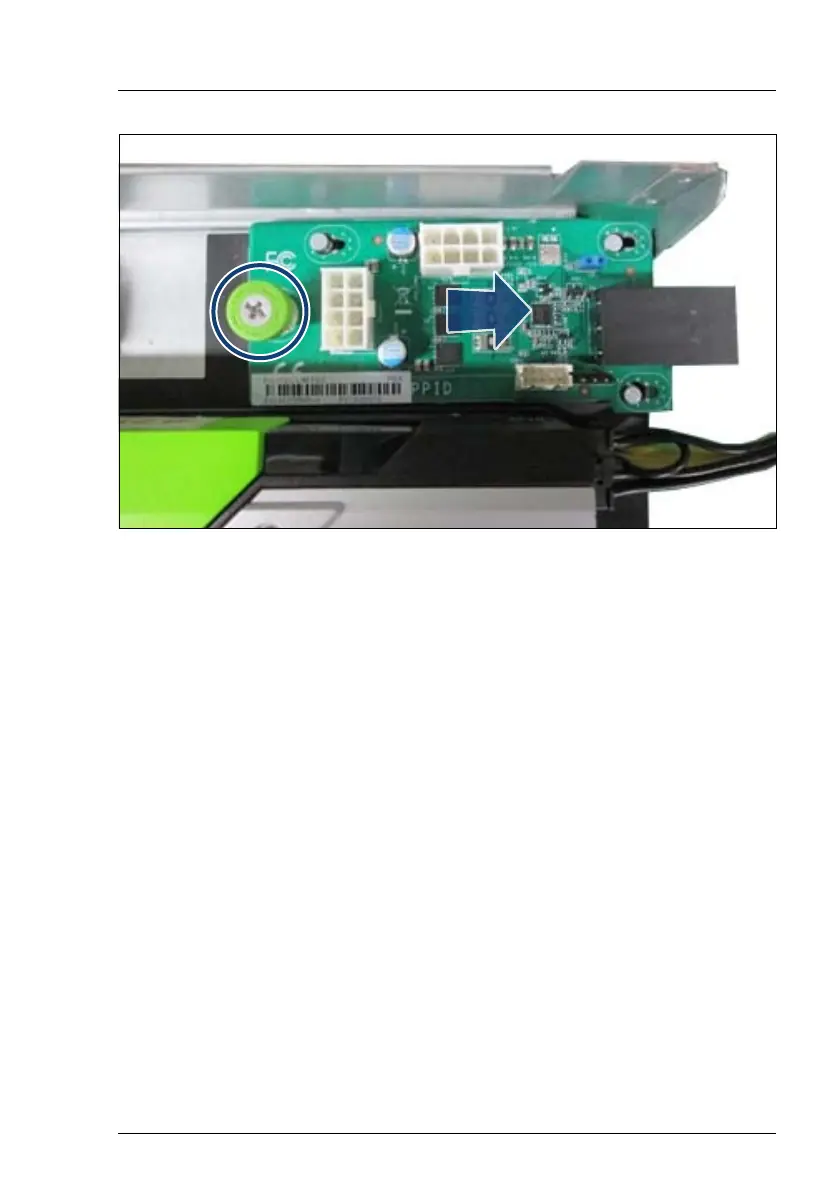

Figure 233: Removing the PIB
Ê Loosen the captive screw (see circle).
Ê Carefully shift the PIB in the direction of the arrow until the plug shell
disengage from the cut-out in the chassis.
Ê Lift the PIB out of the chassis.
