66 Upgrade and Maintenance Manual CX2550/60/70 M4
Basic hardware procedures

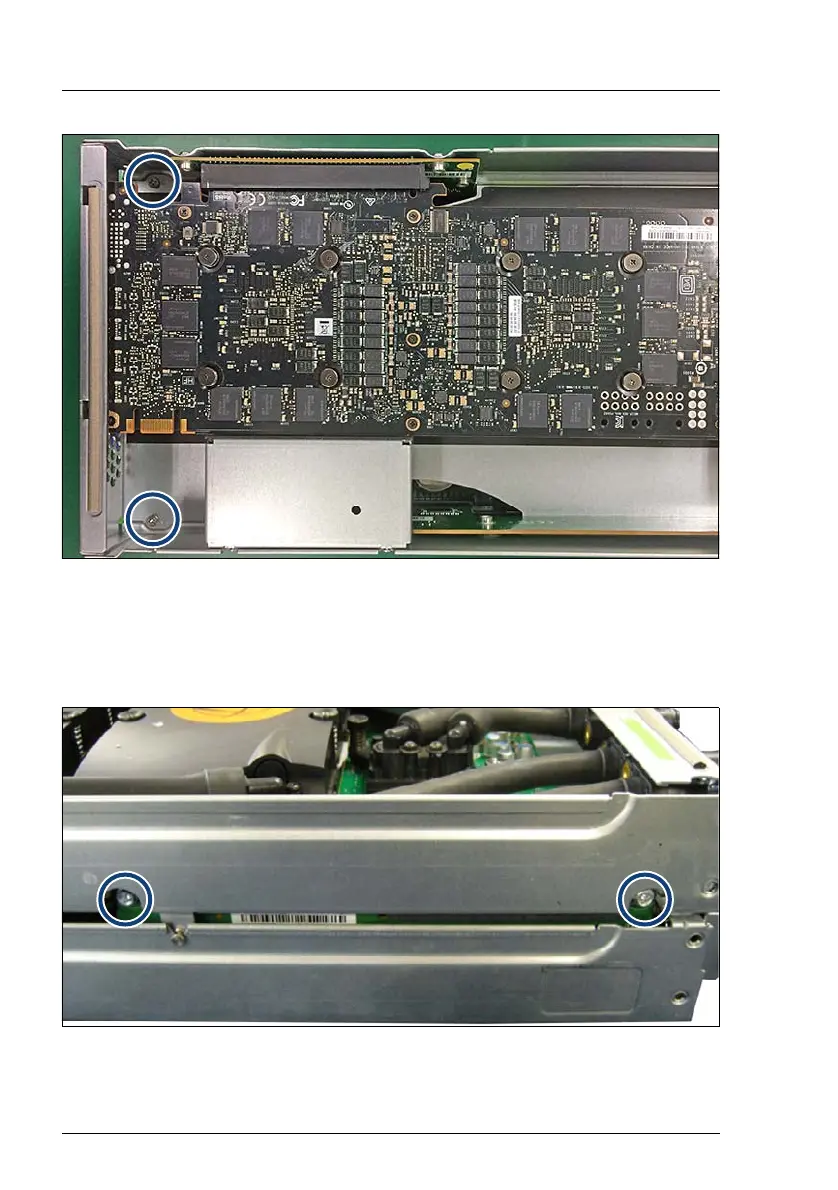

Figure 22: Installing the GPGPU extension tray (B)
– Secure the GPGPU extension tray with 2 screws (see circles).
I When you use CX2570(SXM) M4 (liquid cooling type 2), perform the
following steps:
Figure 23: Installing the SXM2 extension tray
– Fasten the screws of the SXM riser card (L) type 2 (see circles).
