336 Upgrade and Maintenance Manual CX2550/60/70 M4
Ê Connect the long power cable to the GPGPU (see circle).

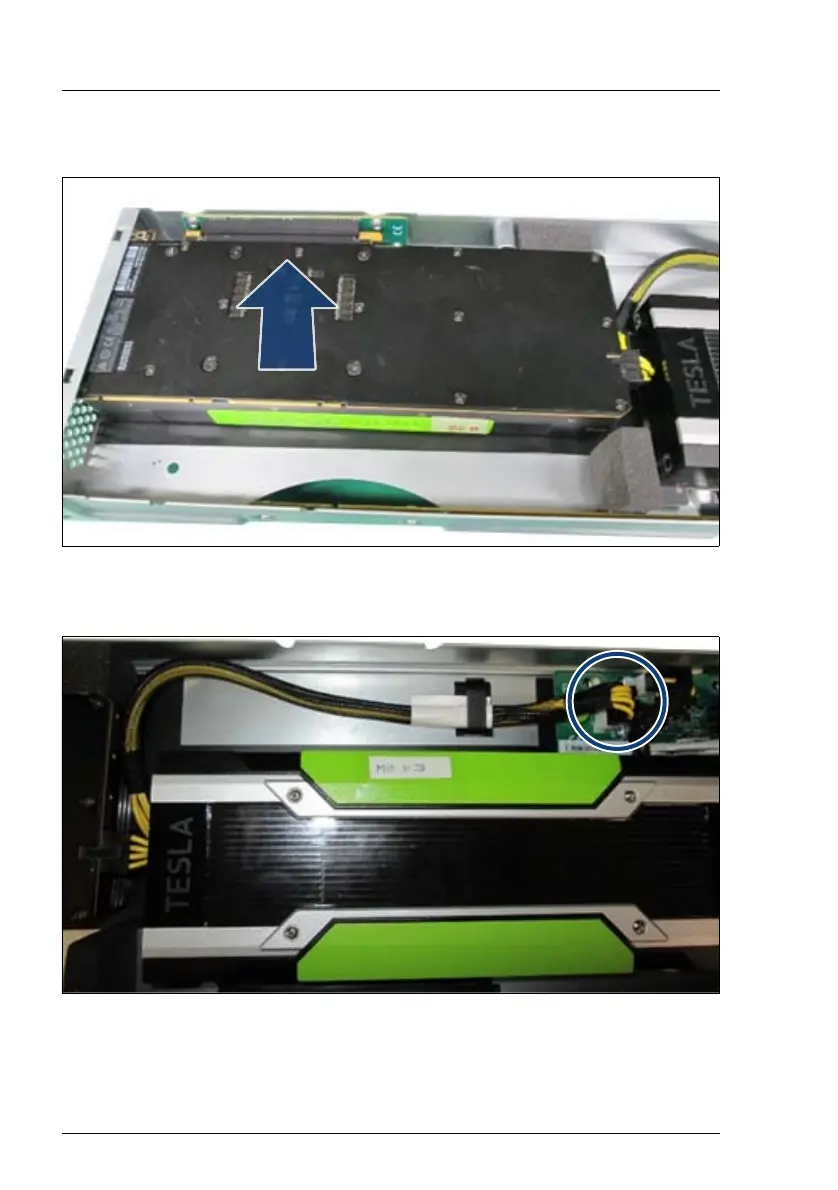

Figure 219: Connecting the GPGPU to PCIe riser (R)
Ê Connect the GPGPU to the riser (R).
Figure 220: Connecting the GPGPU power cable to the PIB
Ê Connect the power cable (see circle) to the PIB and route the power cable
as shown.
