142 Upgrade and Maintenance Manual CX2550/60/70 M4
Expansion cards and OCP mezzanine cards

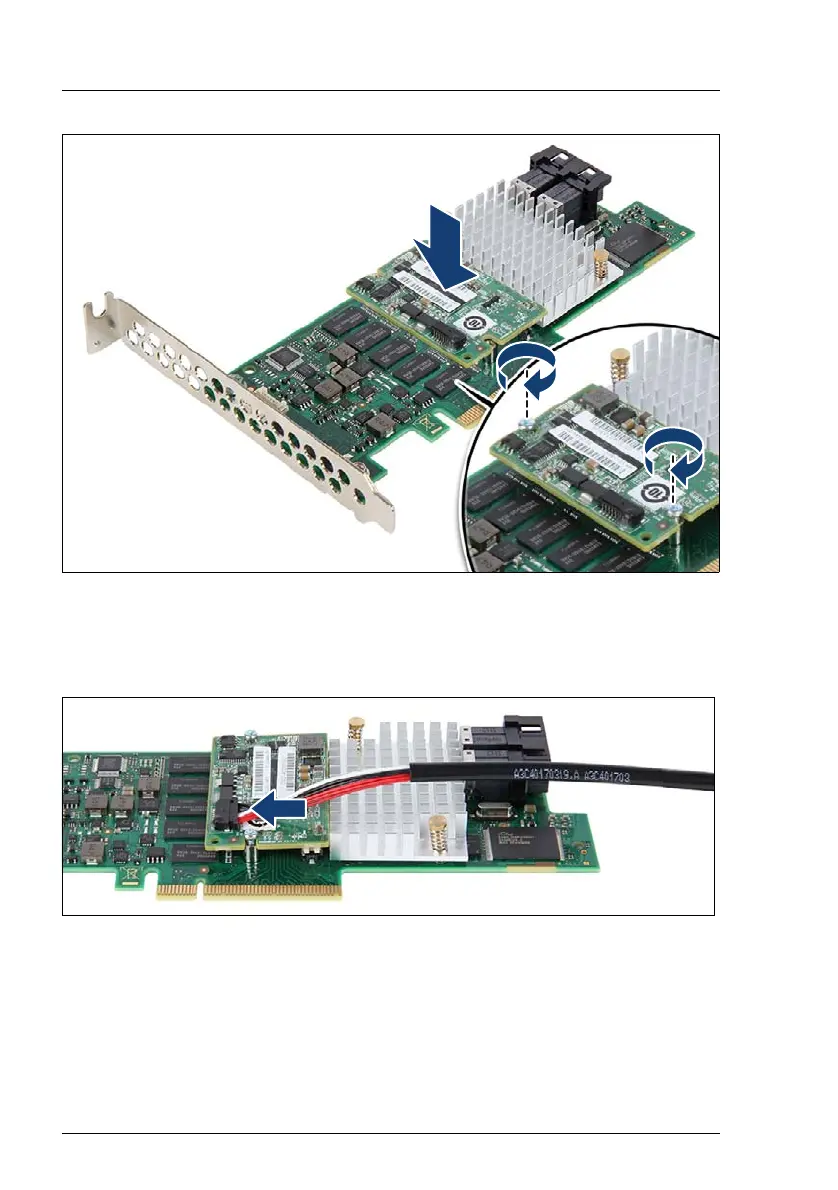

Figure 45: Mounting the TFM (B)
Ê Attach the TFM to the RAID controller.
Ê Secure the TFM on the spacer bolts with two screws from the TFM kit.
Figure 46: Mounting the TFM (C)
Ê Connect the FBU adapter cable to the TFM.
Ê Install the SAS RAID controller, see section "Installing expansion cards" on
page 119.
Ê Connect the SAS cables to their original connectors on the SAS RAID
controller.
