176 Upgrade and Maintenance Manual CX2550/60/70 M4
Expansion cards and OCP mezzanine cards

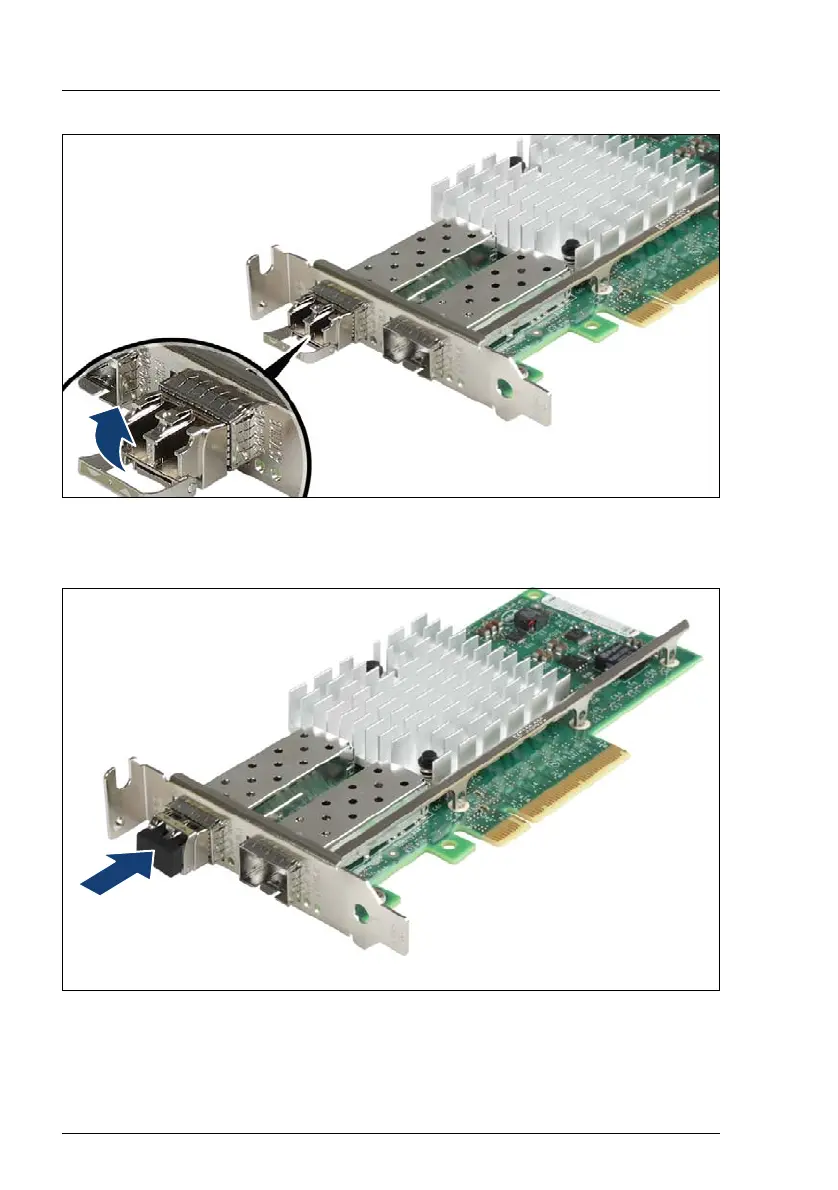

Figure 75: Latching the locking bail
Ê Carefully fold up and latch the locking bail.
Figure 76: Attaching the protective optical port plug
Ê If the SFP+ transceiver module is not immediately connected to an LC
connector, attach the protective optical port plug to the transceiver optical
bores.
