180 Upgrade and Maintenance Manual CX2550/60/70 M4
Expansion cards and OCP mezzanine cards

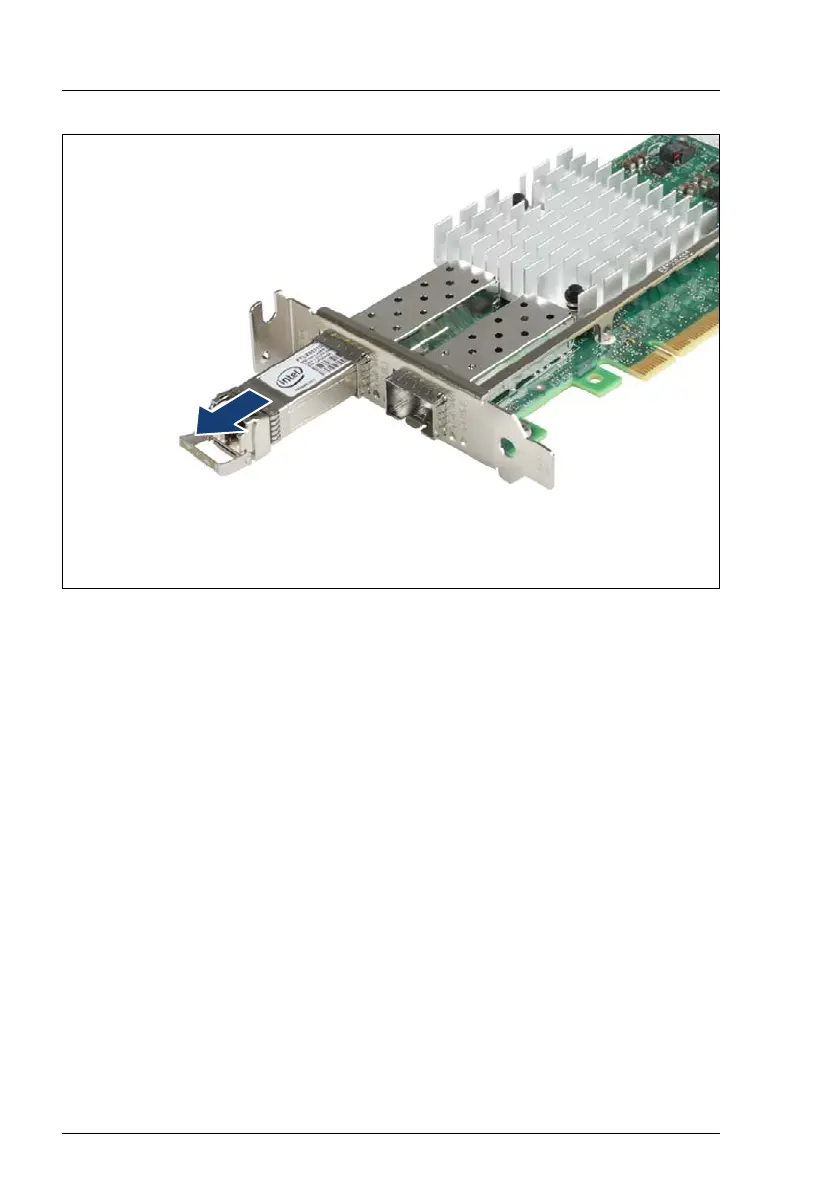

Figure 80: Removing the SFP+ transceiver
Ê Pull the SFP+ transceiver module out of its socket connector.
Ê Reattach the protective optical port plug to the transceiver optical bores.
I Place the removed SFP+ transceiver module in an antistatic bag or
other protective environment.
