202 Upgrade and Maintenance Manual CX2550/60/70 M4

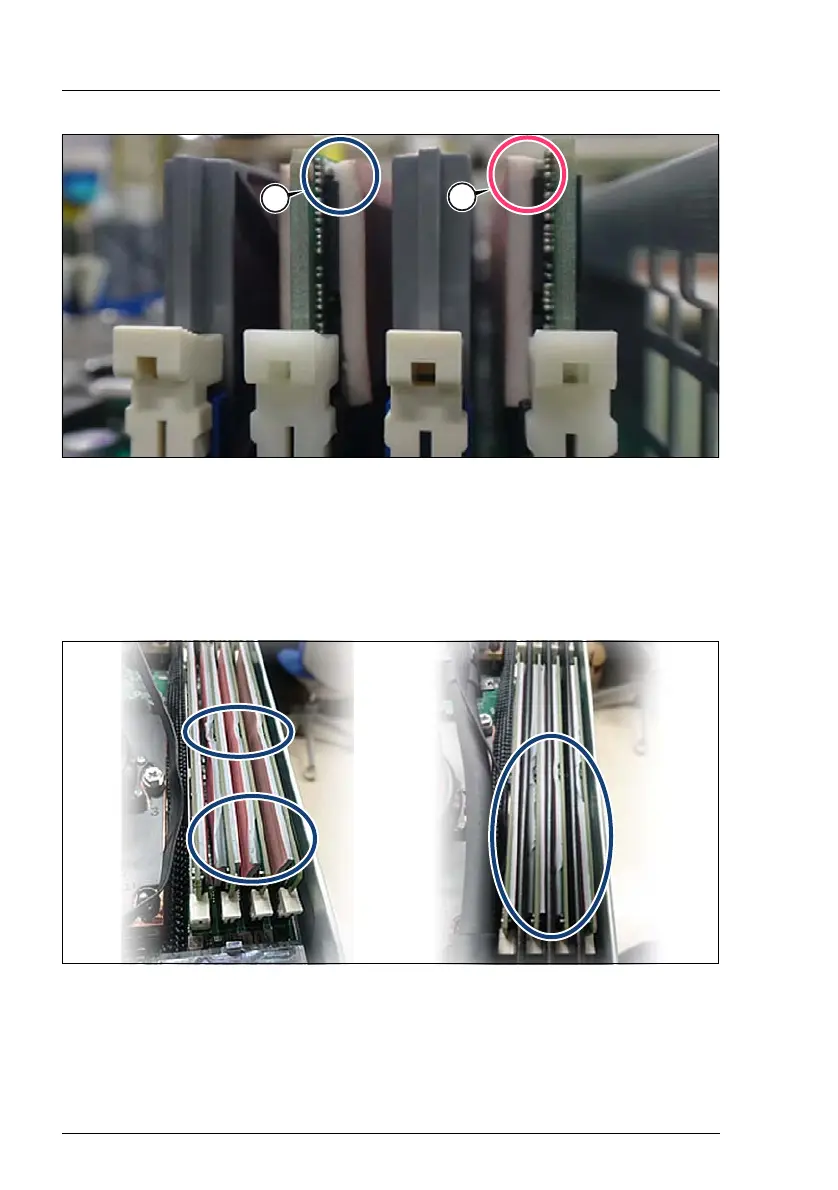

Figure 92: Cooling pads (processing instructions)
Ê Make sure that the edge of the pad is pressed down (1). Pay attention to not
attach the cooling pads like this (2).
I The dummy module is not used in the liquid cooling model.
Figure 93: Memory modules (badly prepared)
These cases are bad examples of a preparation of the memory modules.
