Processor (CPU)

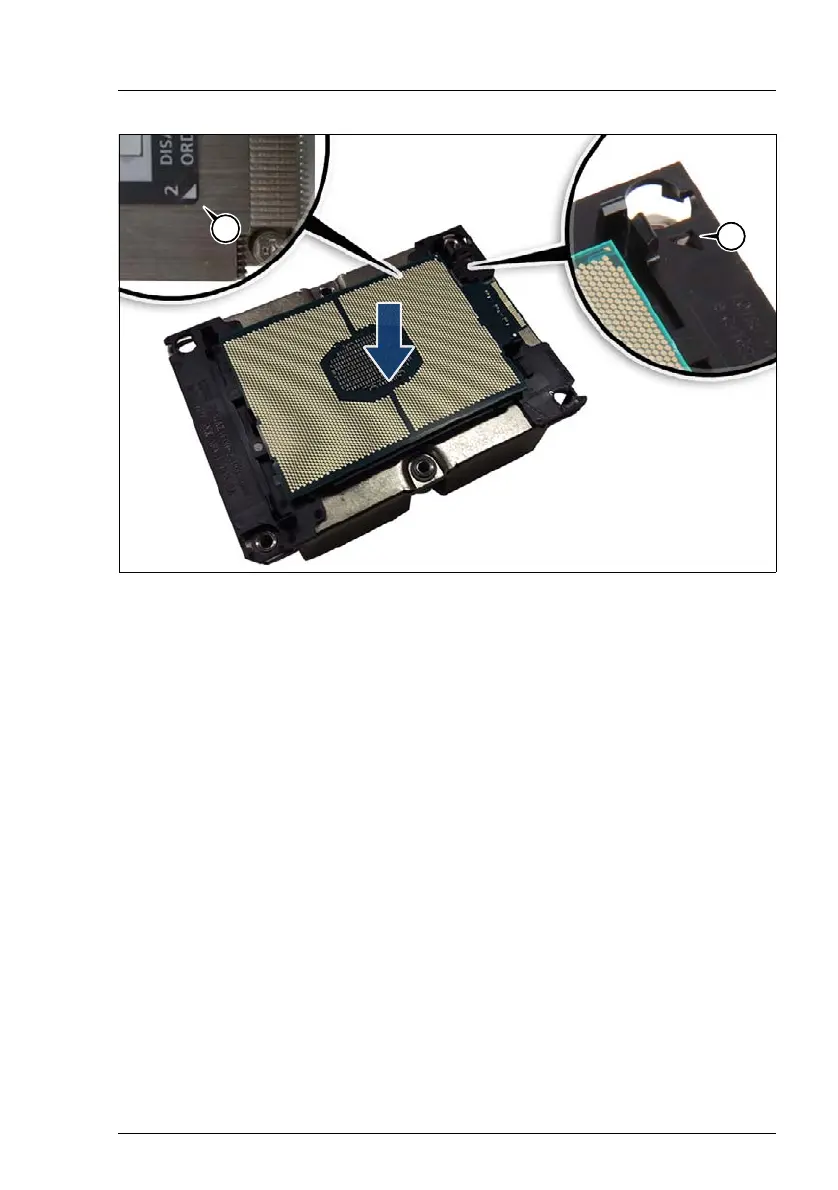

Figure 104: Installing the CPU frame (A)
Ê Place the CPU frame onto the heat sink. Make sure that the bottom side of
the screw 2 of heat sink (A) and the triangle mark of CPU frame (B) are on
the same edge.
A
A
B
