Processor (CPU)

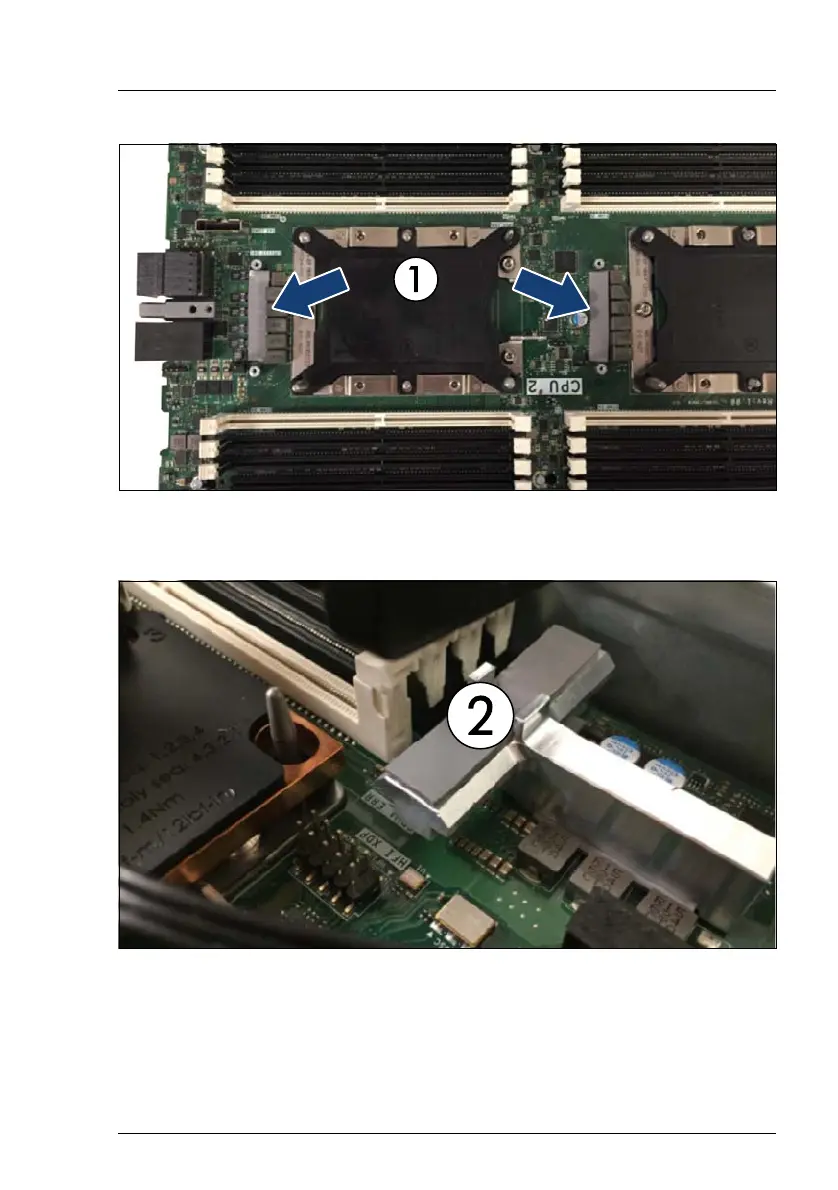

Figure 134: Placing thermal sheet 1
Ê Place the thermal sheet (40x7 mm) (1).
Figure 135: Placing thermal sheet 2
Ê Place the thermal sheet (44x8.3 mm) on the VR cooling block (2).
