340 Upgrade and Maintenance Manual CX2550/60/70 M4

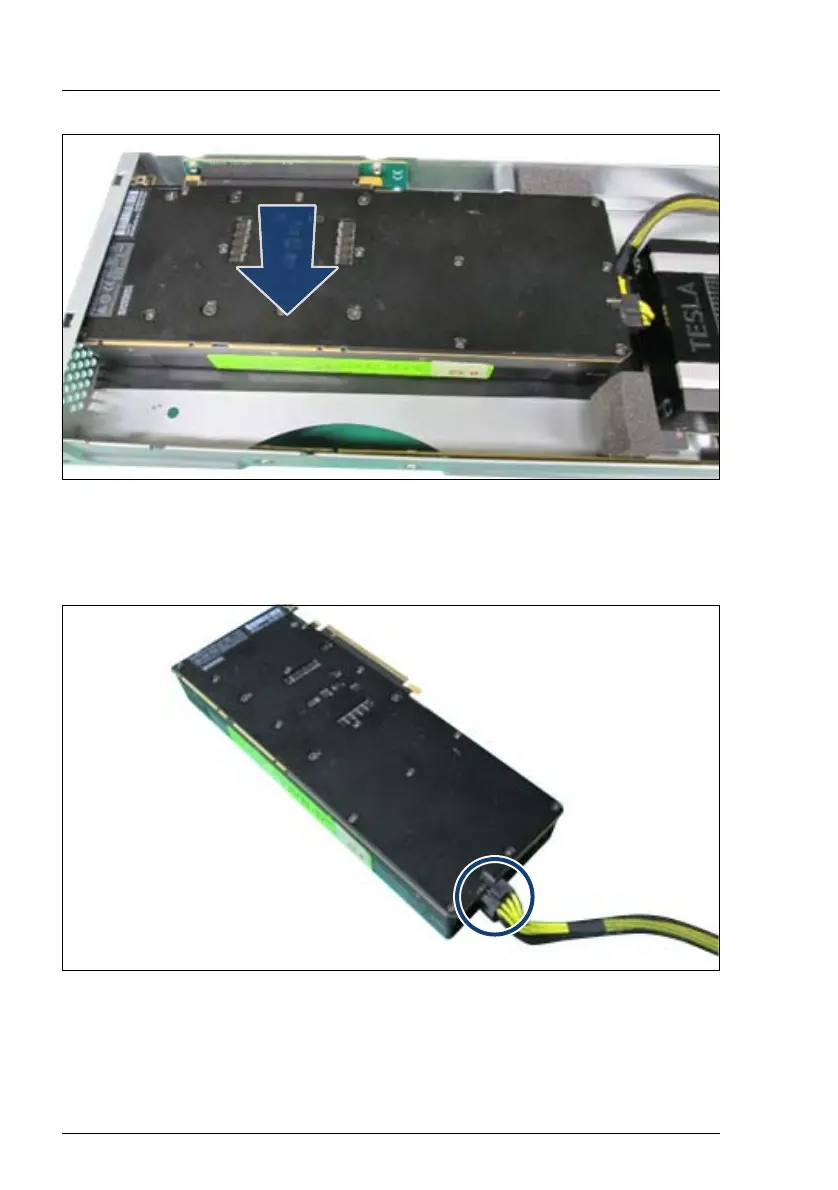

Figure 224: Removing the GPGPU from the riser (L)
Ê Disconnect the GPGPU from the riser card (L), see arrow.
Ê Lift the GPGPU in a vertical motion out of the chassis.
Figure 225: Disconnecting the long GPGPU power cable
Ê Disconnect the long GPGPU power cable from the GPGPU (see circle).
