Fujitsu PRIMERGY CX2550 M4

366 Upgrade and Maintenance Manual CX2550/60/70 M4
SXM2 extension tray

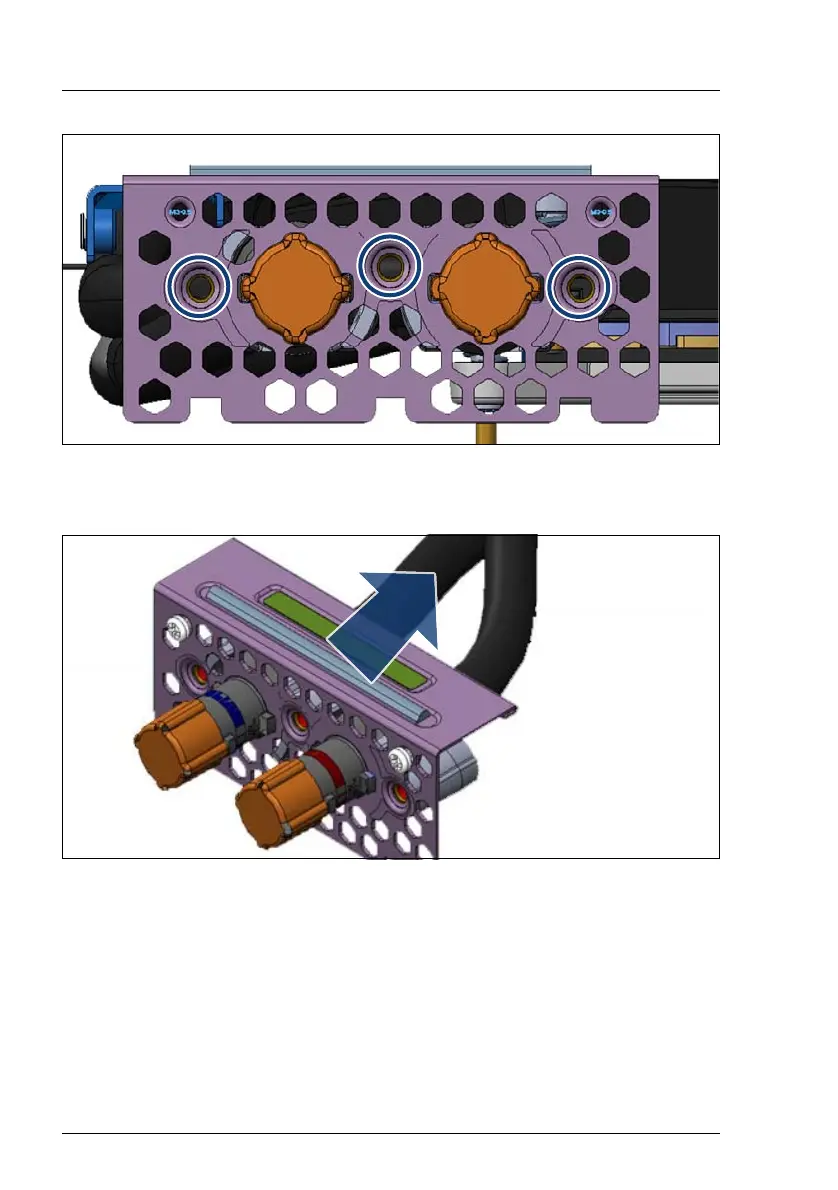

Figure 247: Loosening the LC bracket
Ê Loosen the three screws (see circles) of the LC bracket.
Figure 248: Removing the flexible tubes
Ê Pull both flexible tubes through the holes of the LC bracket (see arrow).
