CX2550/60/70 M4 Upgrade and Maintenance Manual 373
Type 2
V CAUTION
Perform the following procedures:
"Removing liquid cooling from SXM2 modules 3 and 4" on page 361

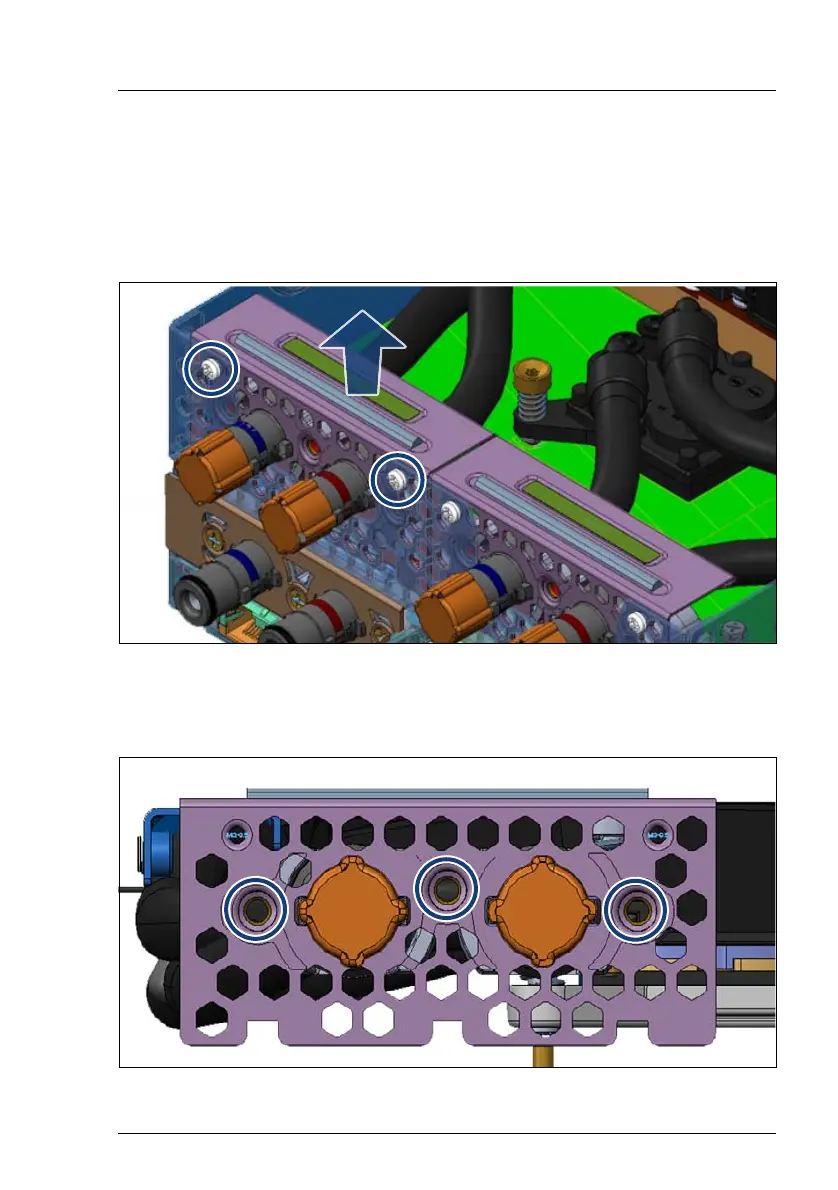

Figure 256: Loosening and lifting up the LC bracket
Ê Loosen the two screws (see circles) of the LC bracket and lift up the LC
bracket with tubes (see arrow).
Figure 257: Loosening the LC bracket
