Fujitsu PRIMERGY CX2550 M4

CX2550/60/70 M4 Upgrade and Maintenance Manual 381
SXM2 extension tray

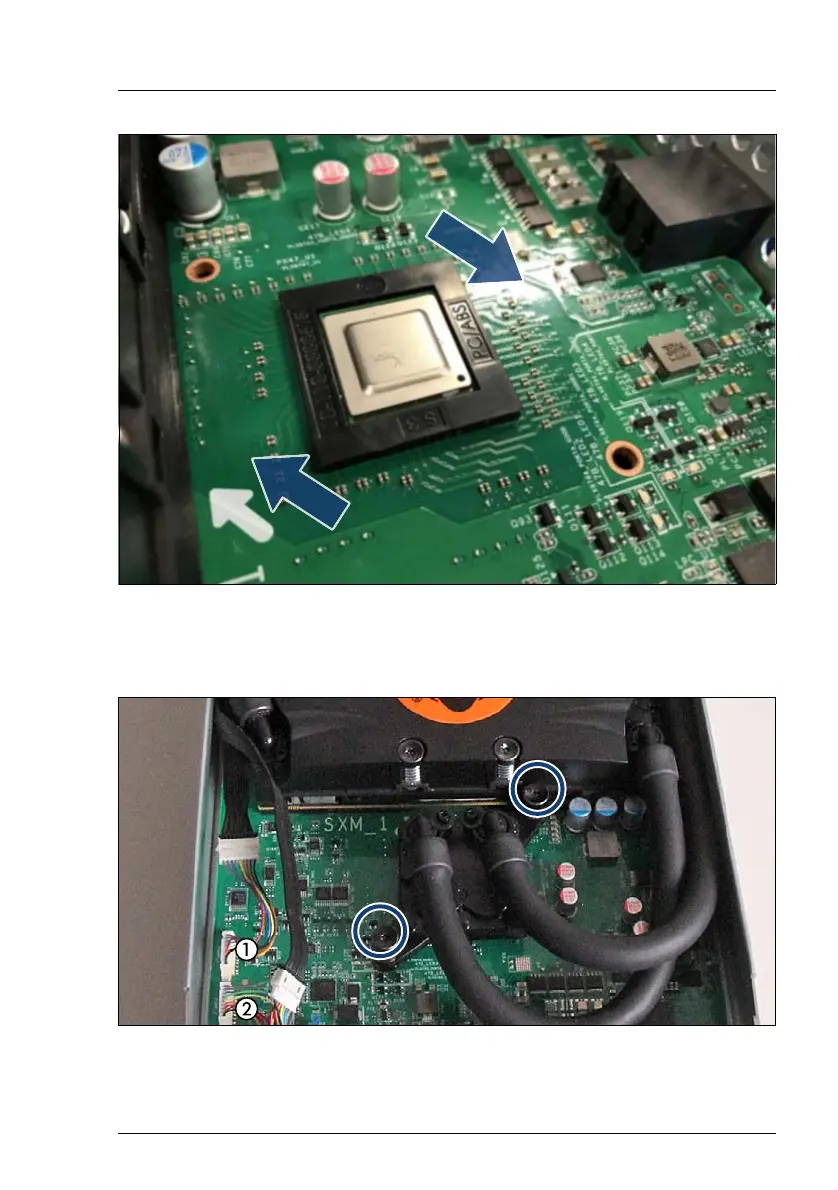

Figure 265: Rotating the PLX bracket
I Rotate the PLX bracket 90 degrees if it doesn’t fit on the chip (see
arrows).
Figure 266: Installing the LC heat sink for PCIe switch 1
Ê Carefully seat the heat sink onto the PCIe switch 1.
