428 Upgrade and Maintenance Manual CX2550/60/70 M4

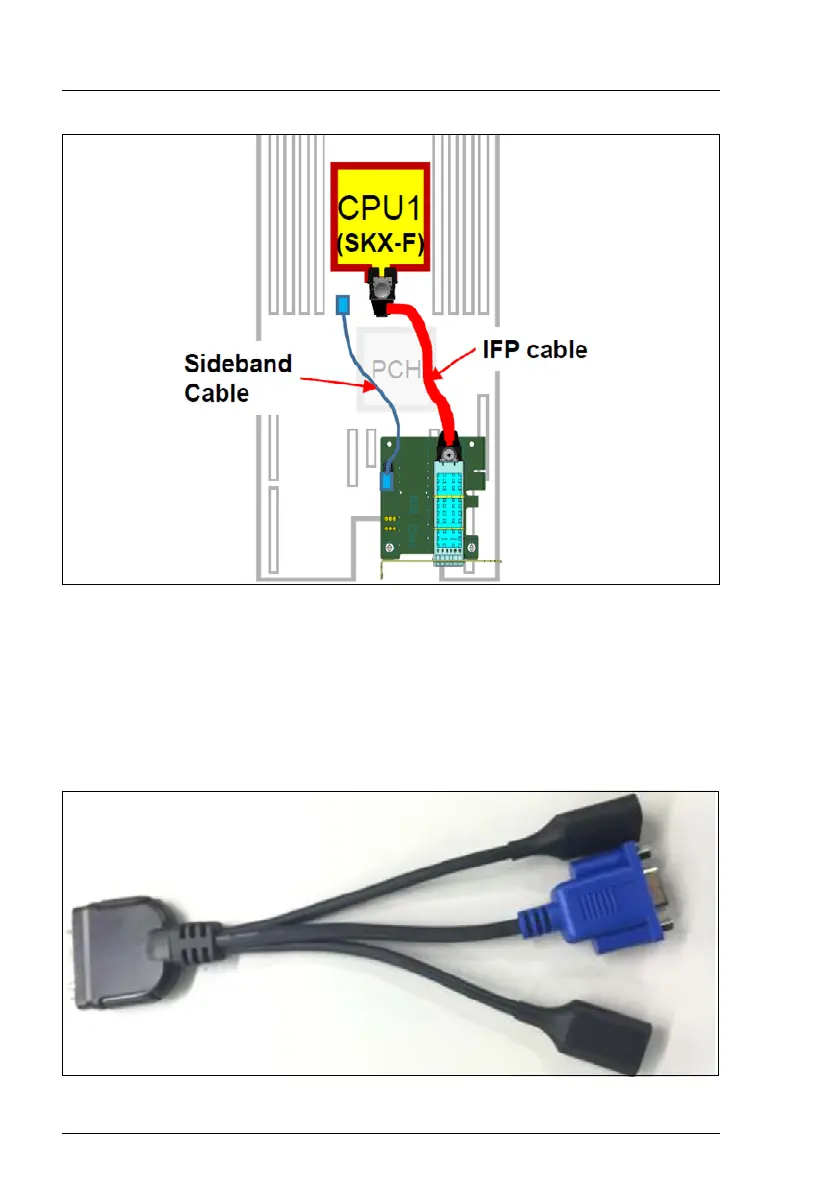

Figure 322: Cabling for the Omni-Path PHY card signal and Omni-Path PHY card sideband
cable
I For more information on connecting the cables, see "Replacing the
Omni-Path PHY card signal cable and Omni-Path PHY card sideband
cable" on page 430.
Dongle cable (USB/VGA)
Figure 323: Dongle cable (USB/VGA)
