5-172 F650 DIGITAL BAY CONTROLLER GEK-106310-AF
5.9 RELAY CONFIGURATION CHAPTER 5: SETPOINTS
EXTENDED GRAPHIC SYMBOLS
For the extended graphic symbols, extraction device must be set to 52a+52b switchgear device.

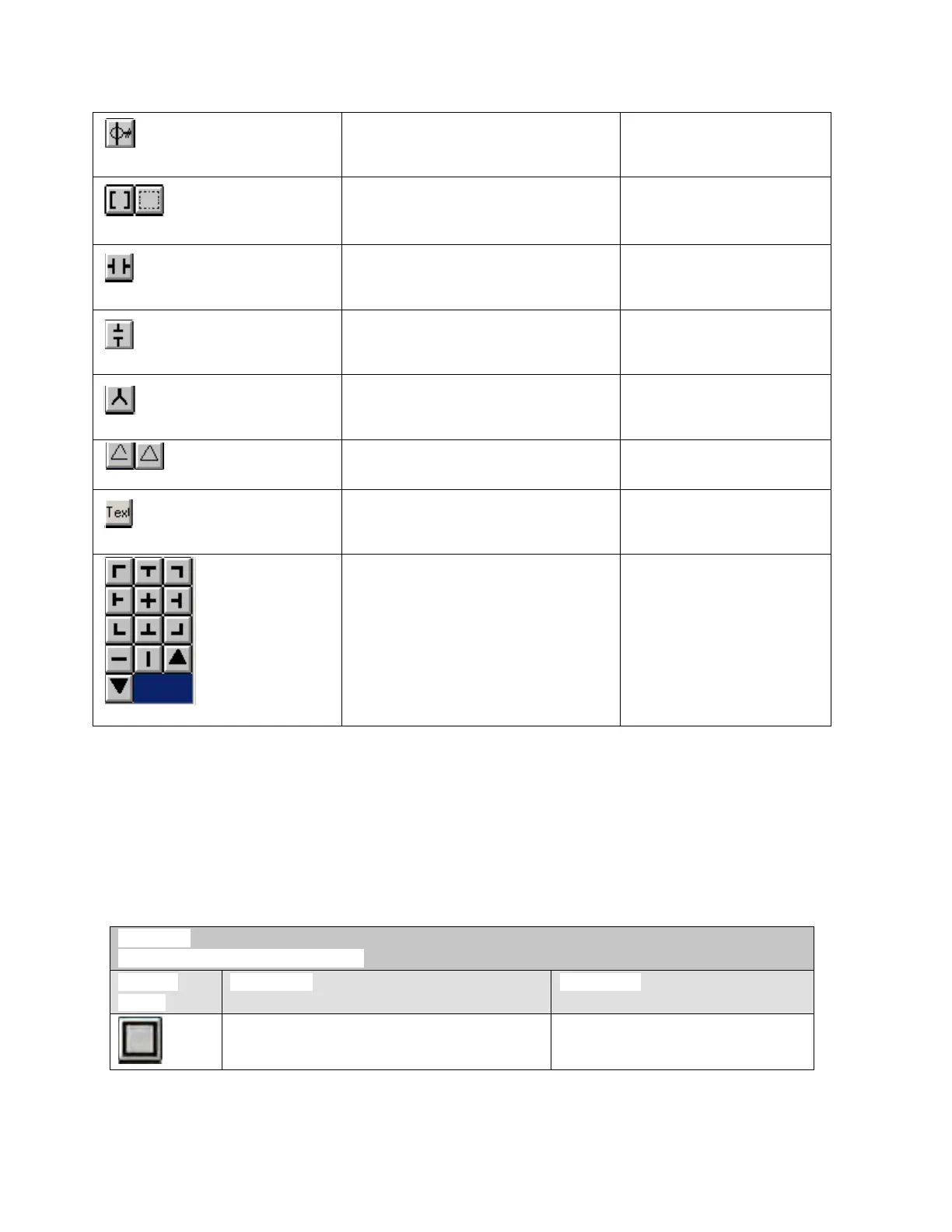

Table 5-96: GRAPHIC AND TEXT EDITION SYMBOLS
Current transformer representation Only for N model (IEC selection).
Symbols reserved for future uses Both M and N selection
Symbol for capacitor banks. Both M and N selection
Symbol for vertical capacitor banks. Only for N model (IEC selection).
Symbol for wye connection Both M and N selection
Symbol for open delta and delta connection Both M and N selection
Display of a fix text up to 40 ASCII characters Both M and N selection
Auxiliary drawing lines Both M and N selection
EXTENDED
GRAPHIC AND TEXT EDITION SYMBOLS
ICONS IN
SCREEN
DESCRIPTION AVAILABILITY
Breaker Only for N model (IEC selection)
