Line*: Lhhhvvv
Where:
l
L = "L" and specifies line drawing;
l
hhh = horizontal width of line;
l
vvv = vertical height of line.
Line**: lhhhhvvvv
Where:
l
l = "l" and specifies line drawing;
l
hhhh = horizontal width of line;
l
vvvv = vertical height of line.
Box***: Bhhhvvvbbbsss
Where:
l
B = "B" and specifies box drawing;
l
hhh = horizontal width of box;
l
vvv = vertical height of box;
l
bbb = thickness of bottom and top box edges;
l
sss = thickness of box sides.
Box****: bhhhhvvvvbbbbssss
Where: b ="b" and specifies box drawing;
l
hhhh = horizontal width of box;
l
vvvv = vertical height of box;
l
bbbb = thickness of bottom and top box edges;
l
ssss = thickness of box sides
Note: Boxes are hollow, while lines can be understood as filled-in boxes.
Sample
1 X 11 004 0010 0010 P 001 0001 0050 0010 0050 0200 0010 0200<CR>

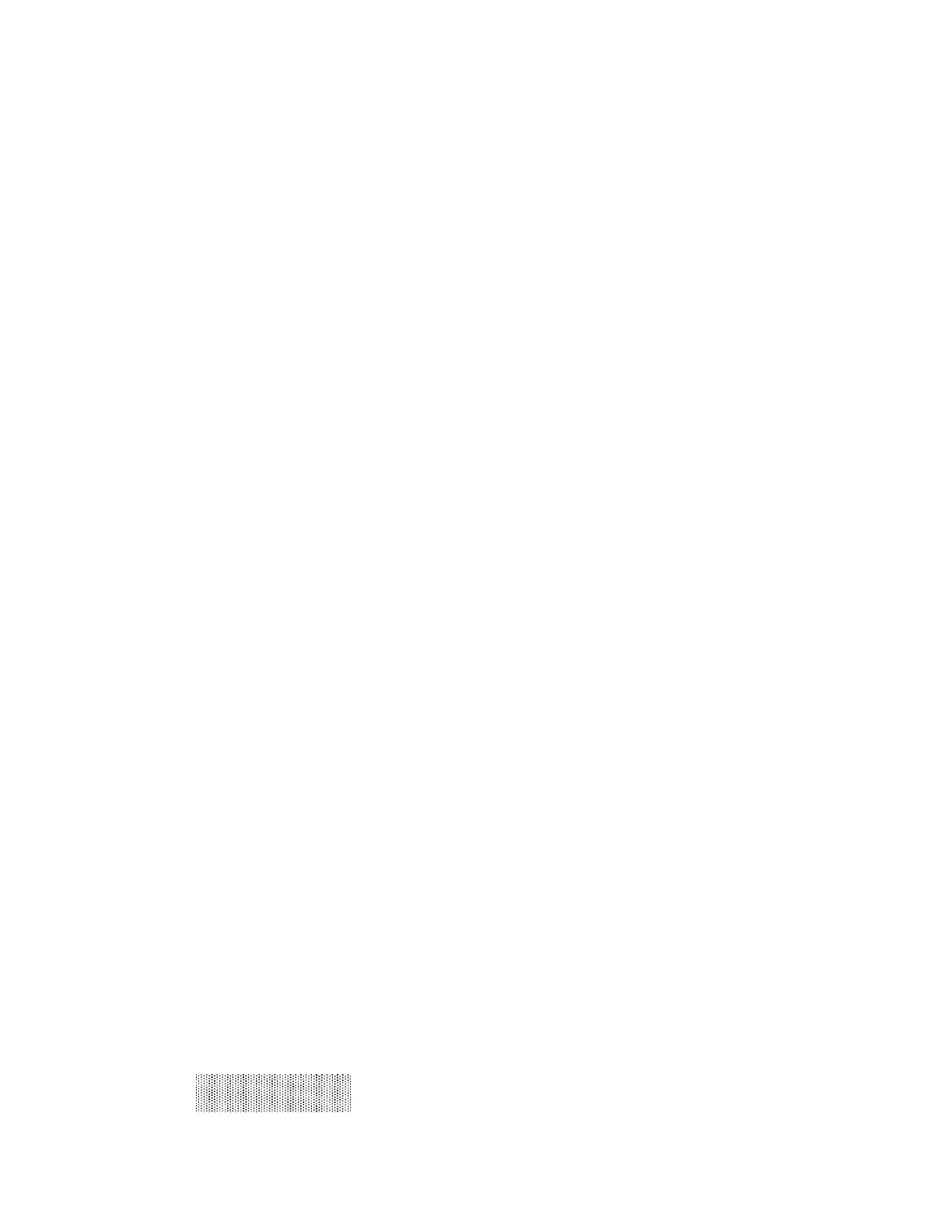

Result
Produces a rectangle filled with pattern 4 (25% Black).
DPL Command Reference
170
