Honeywell E-Class Series - Examples

Examples
In the UPS 3.0 protocol examples that follow, Primary Message control characters
G
S
will not be encoded in the MaxiCode symbol. All characters in the Secondary Message,
with the exception of the leading
G
S
, are encoded.

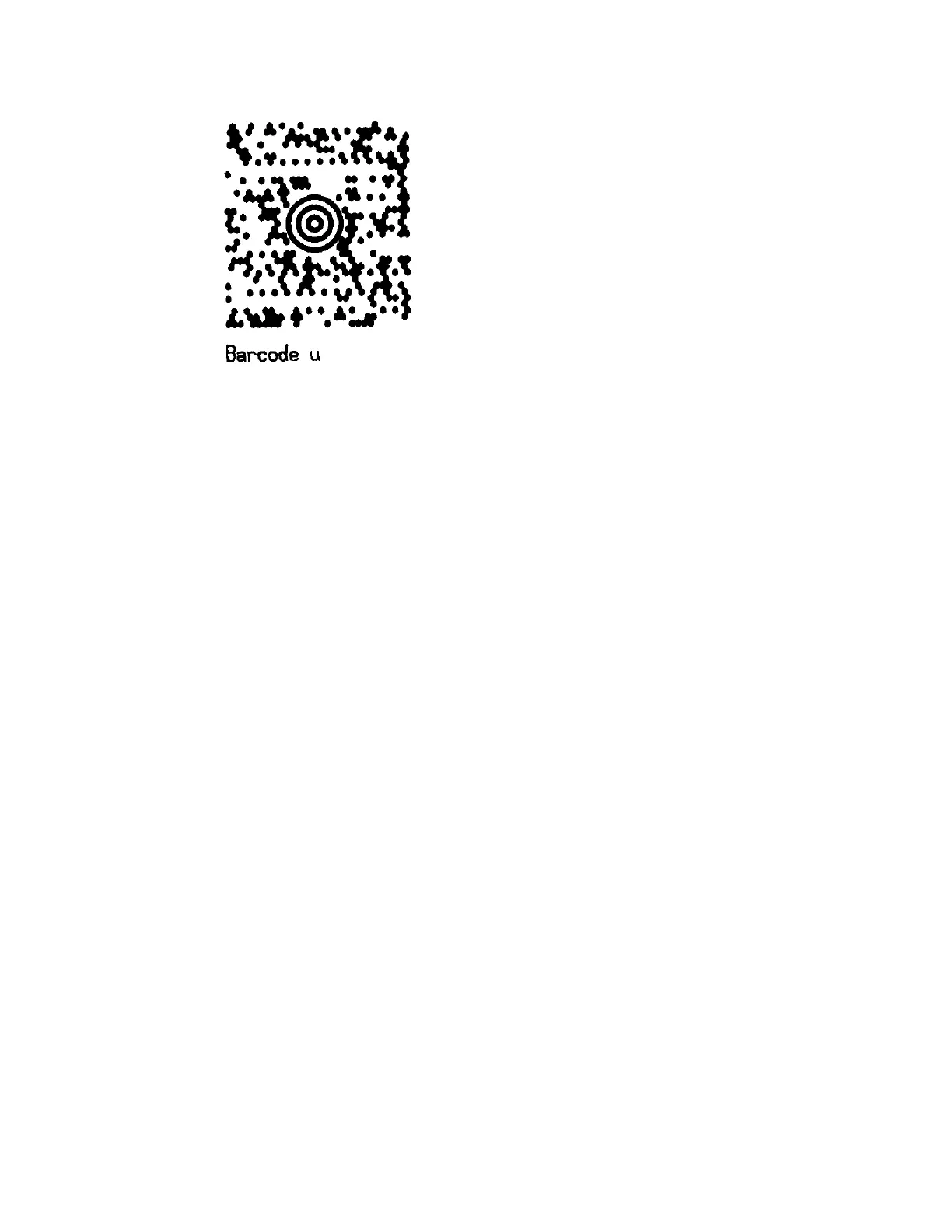

Example 1
A UPS 3.0 zip + 4 with Message data format and message header:
1U0000001200120
[)>
R
S
01
G
S
96841706672
G
S
840
G
S
001
G
S
1Z12345675
G
S
UPSN
G
S
12345E
G
S
089
G
S
G
S
1/1
G
S
10.1
G
S
Y
G
S
G
S
G
S
UT
R
S
E
O
T
Where:
l
[)>
R
S
01
G
S
96 - Message Header
l
841706672 - Maximum 9 alphanumeric ASCII, postal code (Primary Message)
l
840 - Country Code (Primary Message)
l
001 - Class (Primary Message)
l
G
S
1Z1... ...T
R
S
E
O
T
- Secondary Message
Example 2
A UPS 3.0 international postal “V6C3E2” with Message data format and message
header:
1U0000001200120
[)>
R
S
01
G
S
96V6C3E2
G
S
068
G
S
001
G
S
1Z12345675
G
S
UPSN
G
S
12345E
G
S
089
G
S
G
S
1/1
G
S
10.1
G
S
Y
G
S
G
S
G
S
UT
R
S
E
O
T
Where:
l
[)>
R
S
01
G
S
96 - Message Header
l
V6C3E2 - Maximum 6 alphanumeric ASCII, international zip code (Primary Mes-
sage)
