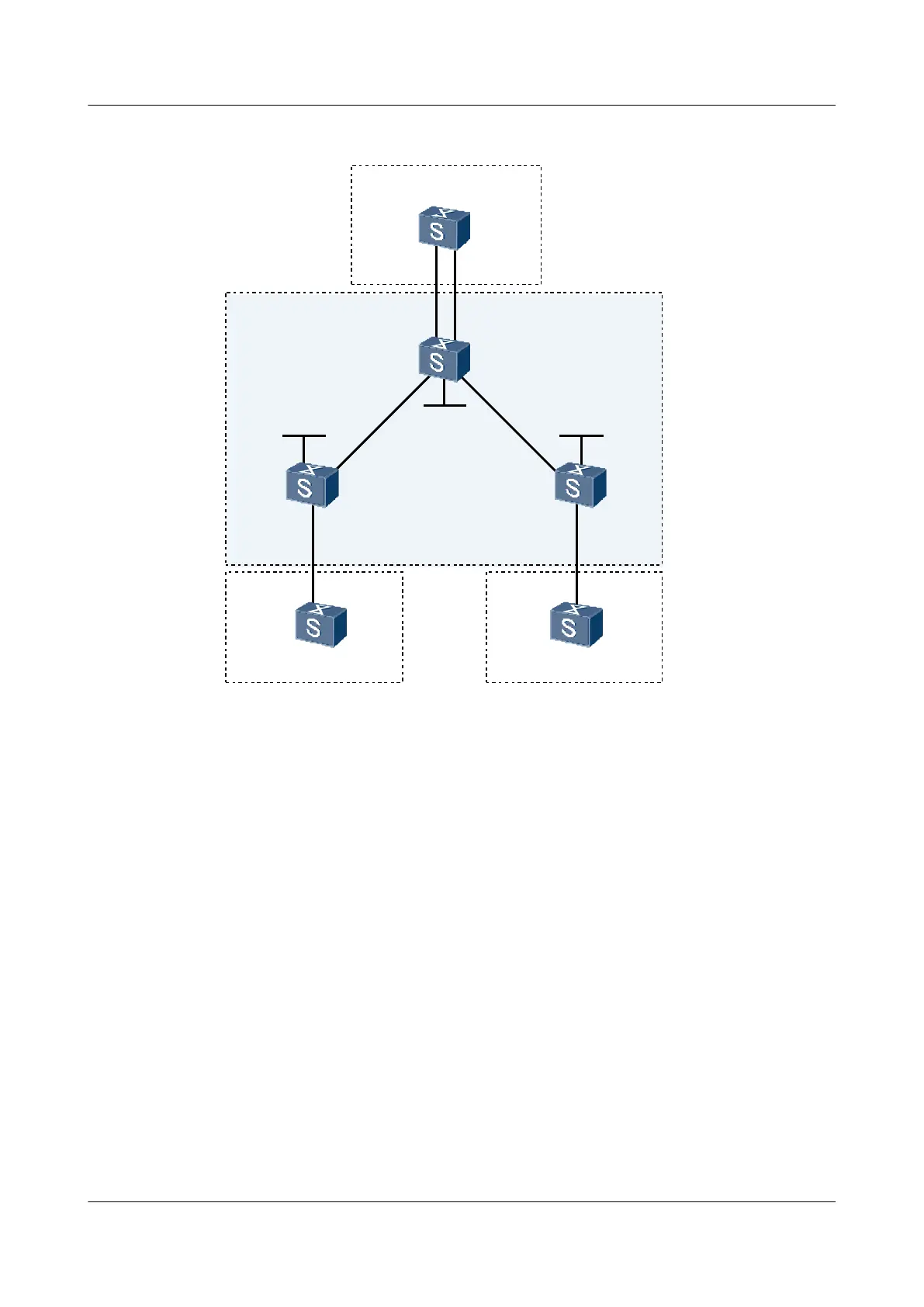

Figure 3-6 Networking diagram for configuring Hub&Spoke
Loopback1
1.1.1.9/32
Loopback1
3.3.3.9/32
AS100
Spoke-PE1
Hub-CE
Spoke-PE2
GE1/0/0
Loopback1
2.2.2.9/32
Hub-PE
GE2/0/0
GE1/0/0
GE2/0/0
Spoke-CE1
GE1/0/0
GE1/0/0
GE2/0/0
Spoke-CE2
GE1/0/0
GE1/0/0
AS: 65410
AS: 65420
AS: 65430
GE3/0/0
GE2/0/0
GE3/0/1
Backbone
S9300 Interface VLANIF interface IP address
Hub-PE GigabitEthernet1/0/0 VLANIF 10 10.1.1.2/24
GigabitEthernet2/0/0 VLANIF 20 11.1.1.2/24
GigabitEthernet3/0/0 VLANIF 30 110.1.1.2/24
GigabitEthernet3/0/1 VLANIF 40 110.2.1.2/24
Loopback1 - 2.2.2.9/32
Spoke-PE1 GigabitEthernet1/0/0 VLANIF 50 100.1.1.2/24
GigabitEthernet2/0/0 VLANIF 10 10.1.1.1/24
Loopback1 - 1.1.1.9/32
Spoke-PE2 GigabitEthernet1/0/0 VLANIF 60 120.1.1.2/24
GigabitEthernet2/0/0 VLANIF 20 11.1.1.1/24
Loopback1 - 3.3.3.9/32
Hub-CE GigabitEthernet1/0/0 VLANIF 30 110.1.1.1/24
GigabitEthernet2/0/0 VLANIF 40 110.2.1.1/24
Spoke-CE1 GigabitEthernet1/0/0 VLANIF 50 100.1.1.1/24
Spoke-CE2 GigabitEthernet1/0/0 VLANIF 60 120.1.1.1/24
