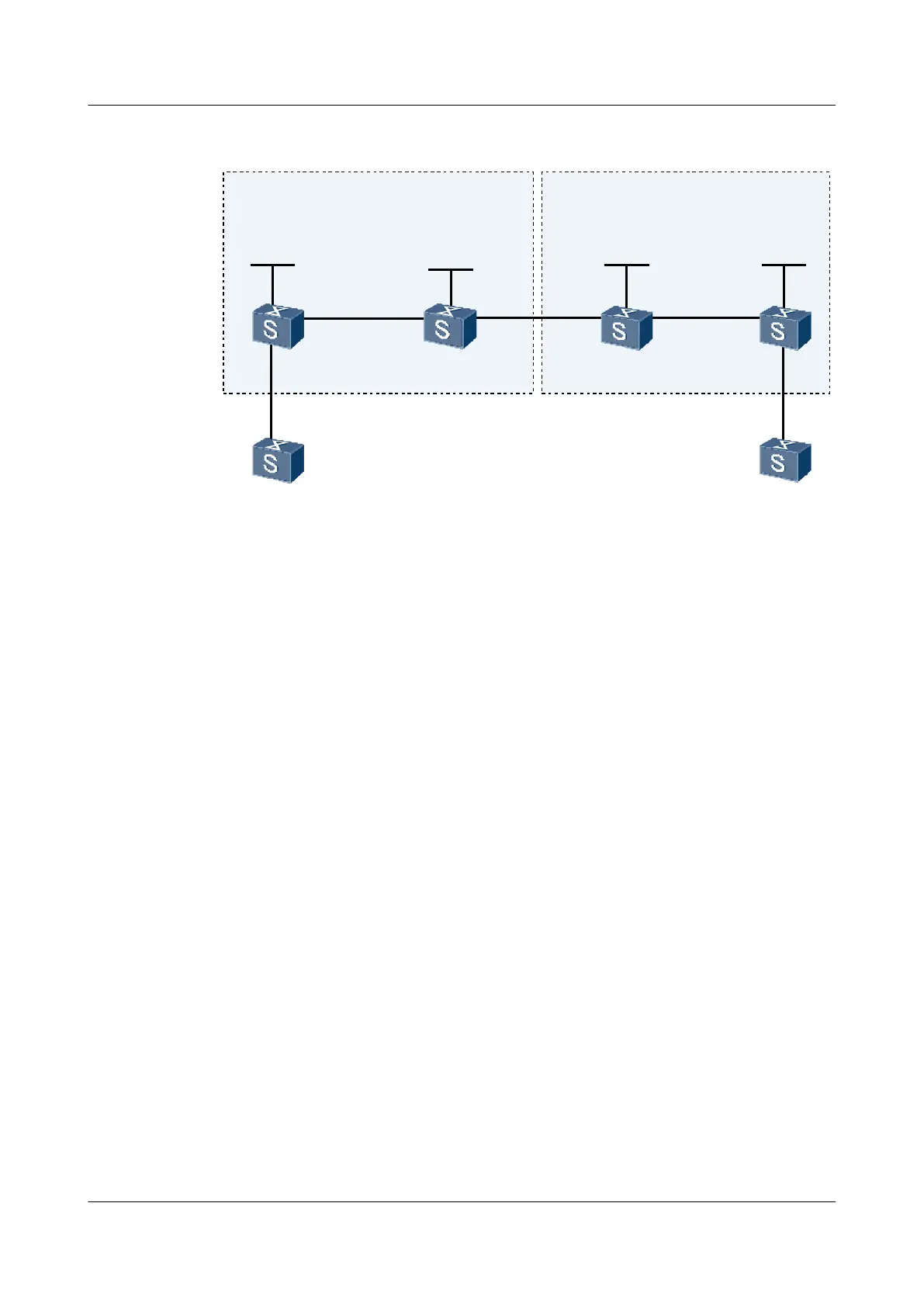

Figure 6-10 Networking diagram for configuring inter-AS Kompella VPLS Option A
GE1/0/0
CE1
PE1
Loopback1
1.1.1.1/32
GE2/0/0
GE1/0/0
GE2/0/0
CE2
PE2
Loopback1
3.3.3.3/32
Loopback1
4.4.4.4/32
GE2/0/0
GE1/0/0
GE1/0/0
Loopback1
2.2.2.2/32
GE2/0/0
GE1/0/0
GE1/0/0
ASBR-PE2ASBR-PE1
VPLS Backbone
AS 100
VPLS Backbone
AS 200
S9300 Interface VLANIF Interface IP Address
PE1 GigabitEthernet 1/0/0 VLANIF 10 -
GigabitEthernet 2/0/0 VLANIF 20 100.1.1.1/24
Loopback1 - 1.1.1.1/32
ASBR-PE1 GigabitEthernet 1/0/0 VLANIF 20 100.1.1.2/24
GigabitEthernet 2/0/0 VLANIF 30 -
Loopback1 - 2.2.2.2/32
ASBR-PE2 GigabitEthernet 1/0/0 VLANIF 30 -
GigabitEthernet 2/0/0 VLANIF 40 100.3.1.1/24
Loopback1 - 3.3.3.3/32
PE2 GigabitEthernet 1/0/0 VLANIF 40 100.3.1.2/24
GigabitEthernet 2/0/0 VLANIF 50 -
Loopback1 - 4.4.4.4/32
CE1 GigabitEthernet 1/0/0 VLANIF 10 10.1.1.1/24
CE2 GigabitEthernet 1/0/0 VLANIF 60 10.1.1.2/24
Configuration Roadmap
The configuration roadmap is as follows:
1. Configure an IGP on the backbone network to implement the connectivity between ASBR-
PEs and PEs and set up tunnels between PEs.
2. Establish MP IBGP peer relationships between PEs and ASBR-PEs in the same AS.
6 VPLS Configuration
Quidway S9300 Terabit Routing Switch
Configuration Guide - VPN
6-76 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Issue 03 (2009-08-20)
