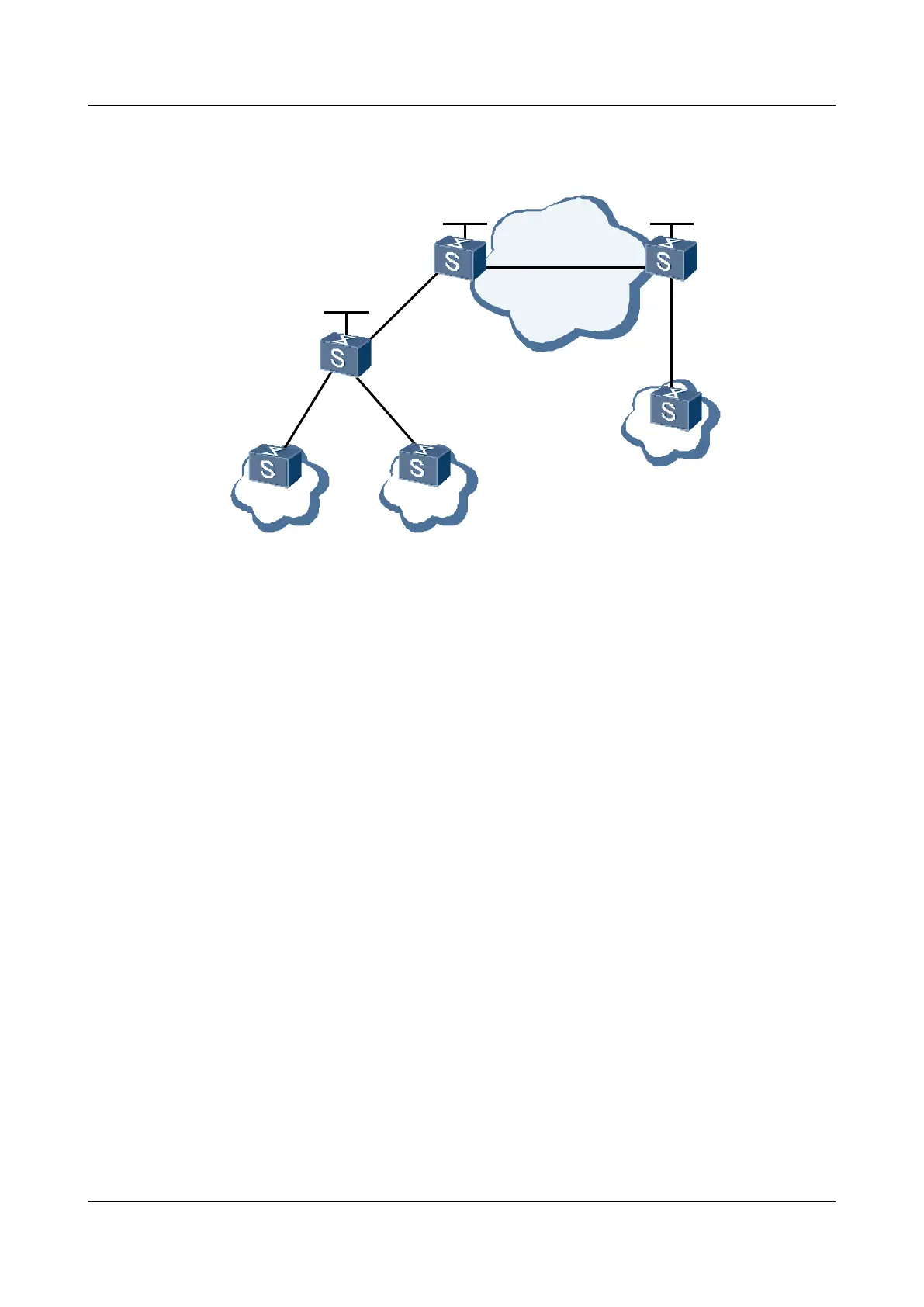

Figure 6-7 Networking diagram for configuring LDP HVPLS
UPE
SPE
PE
Basic VPLS full mesh
Site1
Site3
Site2
Loopback1
1.1.1.9/32
Loopback1
2.2.2.9/32
Loopback1
3.3.3.9/32
GE1/0/0
GE2/0/0
GE1/0/0
GE1/0/0
GE1/0/0
GE1/0/0
GE3/0/0
GE2/0/0
GE1/0/0
CE1
CE2
CE3
GE2/0/0
S9300 Interface VLANIF Interface IP Address
UPE GigabitEthernet 1/0/0 VLANIF 10 -
GigabitEthernet 2/0/0 VLANIF 20 -
GigabitEthernet 3/0/0 VLANIF 30 100.1.1.1/24
Loopback1 - 1.1.1.9/32
SPE GigabitEthernet 1/0/0 VLANIF 30 100.1.1.2/24
GigabitEthernet 2/0/0 VLANIF 40 100.2.1.1/24
Loopback1 - 2.2.2.9/32
PE GigabitEthernet 1/0/0 VLANIF 40 100.2.1.2/24
GigabitEthernet 2/0/0 VLANIF 50 -
Loopback1 - 3.3.3.9/32
CE1 GigabitEthernet 1/0/0 VLANIF 10 10.1.1.1/24
CE2 GigabitEthernet 1/0/0 VLANIF 20 10.1.1.2/24
CE3 GigabitEthernet 1/0/0 VLANIF 50 10.1.1.3/24
Configuration Roadmap
The configuration roadmap is as follows:
1. Complete the task of Configuring Martini VPLS between SPEs and PEs.
2. Establish the MPLS LDP peer relationship between UPEs and SPEs.
3. Create a VSI on an SPE, and specify the UPE as its PE of the lower layer.
