1.9.2 Example for Binding a Tunnel to the Martini L2VPN
Networking Requirements
As shown in Figure 1-3, Site 1, Site 2, and Site 3 belong to VPNA. The networking requirements
are as follows:
l Configuring a Martini L2VPN
l Guarantee a bandwidth of 10 Mbit/s for communication between Site 1 and Site 2 and a
bandwidth of 20 Mbit/s for communication between Site 1 and Site 3.
l The communication between Site 1 and Site 2 is independent of that between Site 1 and
Site 3.

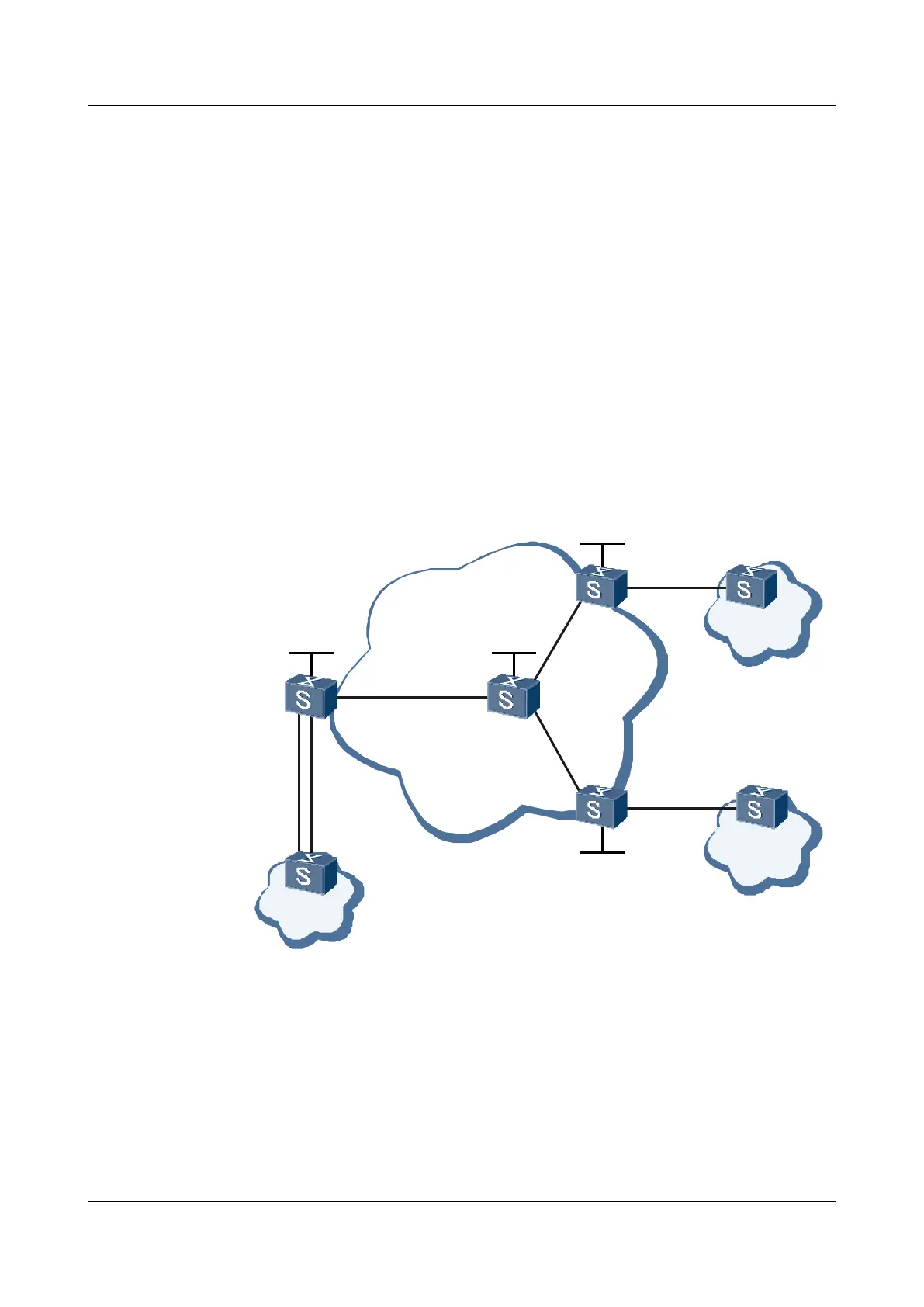

Figure 1-3 Networking diagram for configuring the L2VPN tunnel binding
Loopback1
1.1.1.9/32
Loopback1
2.2.2.9/32
Loopback1
3.3.3.9/32
Loopback1
4.4.4.9/32
GE 1/0/1
GE 1/0/1
GE 1/0/2
GE 1/0/2
GE 1/0/3
GE 1/0/3
GE 1/0/1
GE 1/0/1
GE 1/0/1
GE 1/0/1
GE 1/0/2
GE 1/0/2
GE 1/0/3
GE 1/0/3
PE1
PE2
PE3
P
Site3
Site2
Site1
CE1
CE2
CE3
VLAN1
VLAN3
VLAN2
VLAN4
VPNA
VPNA
VPNA
S9300
Interface VLANIF interface IP address
PE1 GigabitEthernet1/0/1 VLANIF 7 100.1.1.2/24
GigabitEthernet1/0/2 VLANIF 1 -
GigabitEthernet1/0/3 VLANIF 4 -
Loopback1 - 1.1.1.9/32
PE2 GigabitEthernet1/0/1 VLANIF 2 -
GigabitEthernet1/0/2 VLANIF 5 100.2.1.2/24
