Huawei Quidway S9300

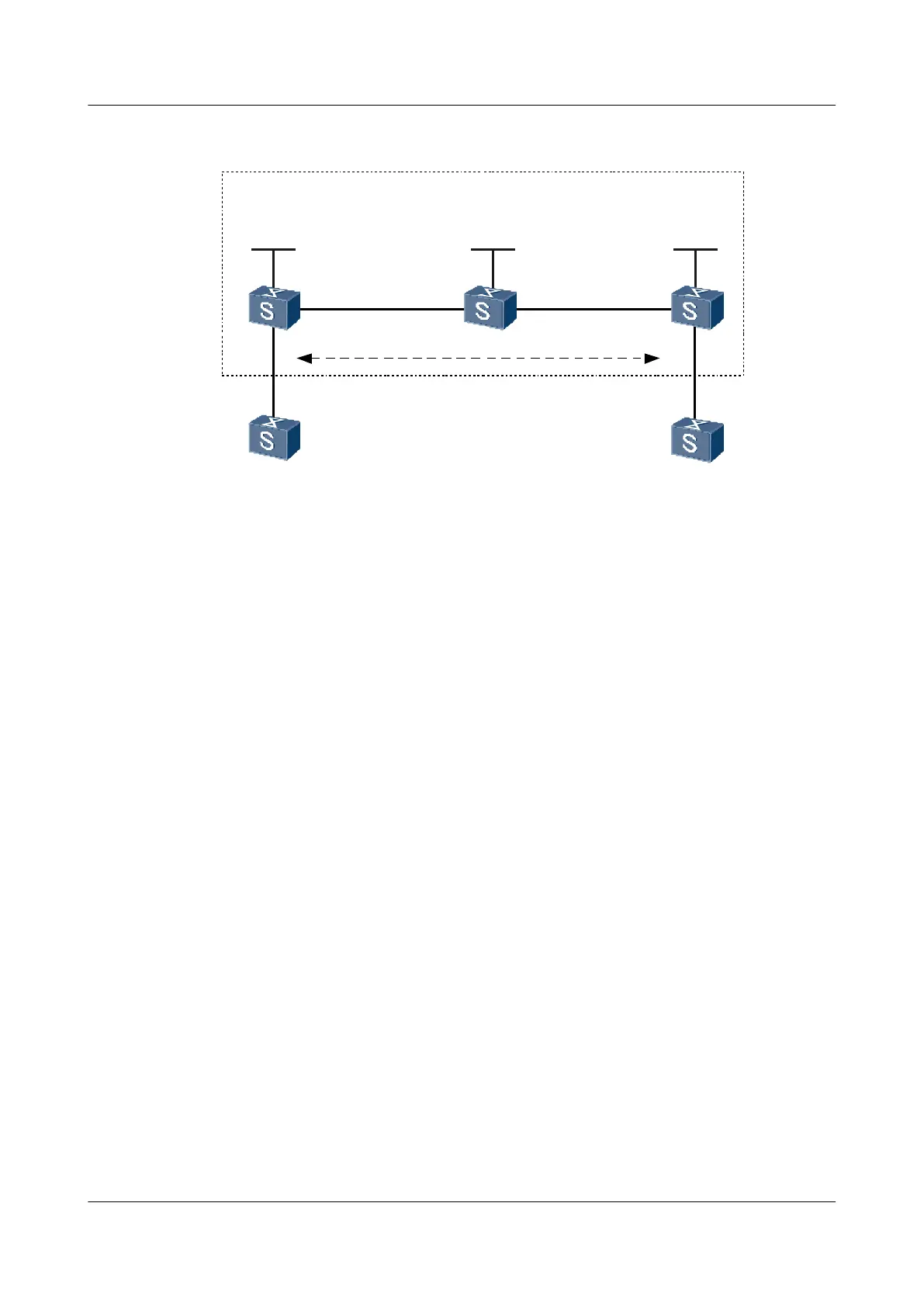

Figure 5-11 Networking diagram for configuring a dynamic SH-PW (using LSP)
PE2
CE1
CE2
Loopback0
192.2.2.2/32
GE2/0/0
GE2/0/0
GE1/0/0
GE2/0/0
GE1/0/0
GE1/0/0 GE1/0/0
GE1/0/0
PW
Loopback0
192.4.4.4/32
Loopback0
192.3.3.3/32
PE1 P
MPLS Backbone
S9300 Interface VLANIF interface IP address
PE1 GigabitEthernet1/0/0 VLANIF 10 -
GigabitEthernet2/0/0 VLANIF 20 10.1.1.1/24
Loopback1 - 192.2.2.2/32
PE2 GigabitEthernet1/0/0 VLANIF 30 -
GigabitEthernet2/0/0 VLANIF 40 10.2.2.2/24
Loopback1 - 192.3.3.3/32
P GigabitEthernet1/0/0 VLANIF 20 10.1.1.2/24
GigabitEthernet2/0/0 VLANIF 40 10.2.2.1/24
Loopback1 - 192.4.4.4/32
CE1 GigabitEthernet1/0/0 VLANIF 10 100.1.1.1/24
CE2 GigabitEthernet1/0/0 VLANIF 30 100.1.1.2/24
Configuration Roadmap
The configuration roadmap is as follows:
1. Run an IGP protocol on the devices of the backbone network to implement connectivity.
2. Configure the basic MPLS functions on the backbone network and set up an LSP. Set up
the MPLS LDP peer relation between the two PEs on the two ends of the PW.
3. Create an MPLS L2VC connection between the two PEs.
Data Preparation
To complete the configuration, you need the following data:
5 PWE3 Configuration
Quidway S9300 Terabit Routing Switch
Configuration Guide - VPN
