Huawei Quidway S9300

interface LoopBack1
ip address 3.3.3.9 255.255.255.255
#
ospf 1
area 0.0.0.0
network 3.3.3.9 0.0.0.0
network 169.1.1.0 0.0.0.255
#
return
6.11.2 Example for Configuring Kompella VPLS
Networking Requirements
As shown in Figure 6-6, PE1 and PE2 are PEs to be enabled with the VPLS function; CE1 is
connected to PE1 and CE2 is connected to PE2; CE1 and CE2 belong to the same VPLS network;
It is required to set up PWs by using BGP as the VPLS signaling, implement the automatic
discovery of VPLS PEs through VPN targets, and implement interworking between CE1 and
CE2.

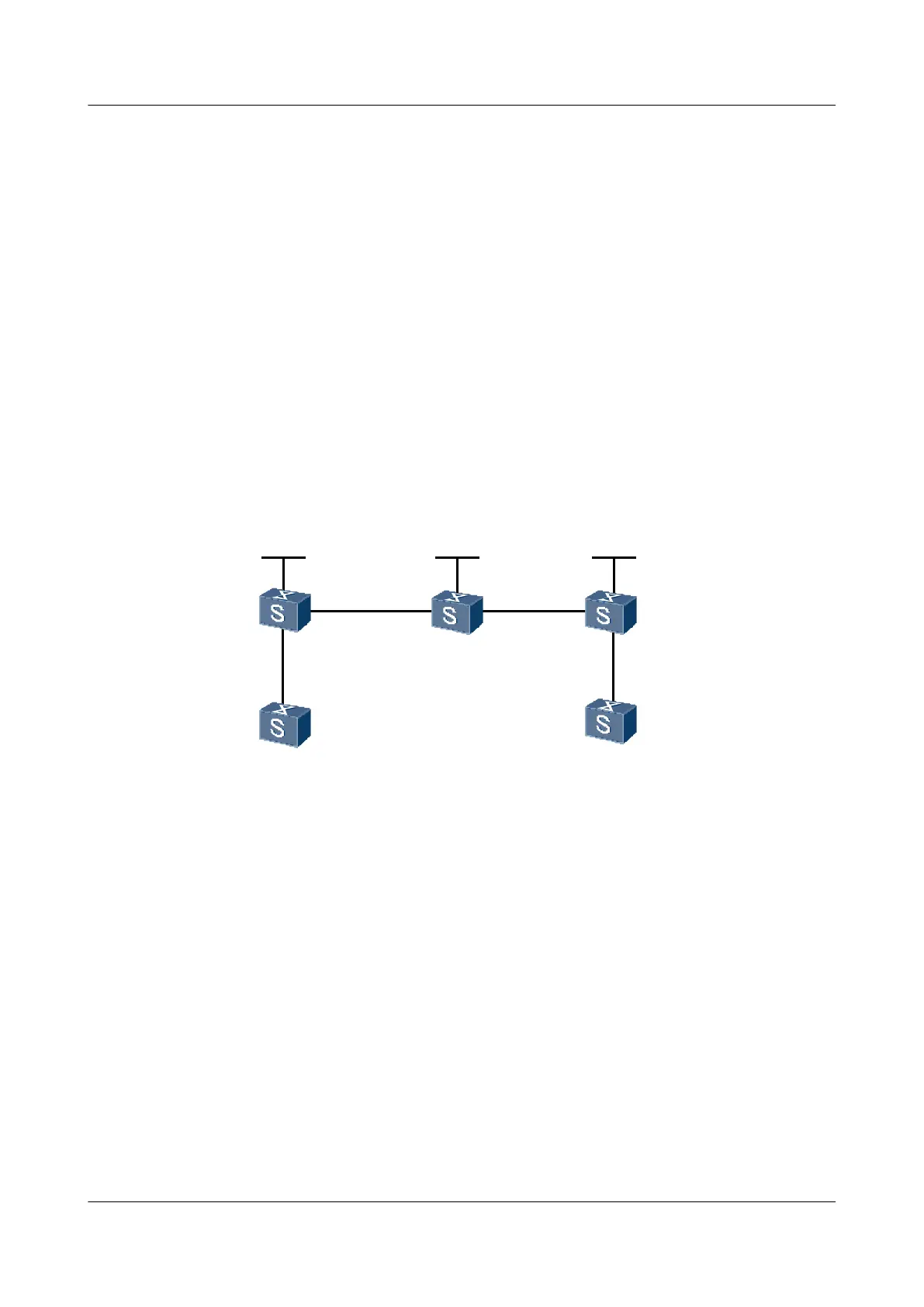

Figure 6-6 Networking diagram for configuring Kompella VPLS
CE1
CE2
PE1
PE2
P
Loopback1
1.1.1.9/32
Loopback1
2.2.2.9/32
Loopback1
3.3.3.9/32
GE2/0/0
GE1/0/0
GE2/0/0
GE1/0/0
GE1/0/0
GE2/0/0
GE1/0/0 GE1/0/0
S9300
Interface VLANIF Interface IP Address
PE1 GigabitEthernet 1/0/0 VLANIF 10 -
GigabitEthernet 2/0/0 VLANIF 20 168.1.1.1/24
Loopback1 - 1.1.1.9/32
PE2 GigabitEthernet 1/0/0 VLANIF 30 169.1.1.2/24
GigabitEthernet 2/0/0 VLANIF 40 -
Loopback1 - 3.3.3.9/32
P GigabitEthernet 1/0/0 VLANIF 20 168.1.1.2/24
GigabitEthernet 2/0/0 VLANIF 30 169.1.1.1/24
Loopback1 - 2.2.2.9/32
CE1 GigabitEthernet 1/0/0 VLANIF 10 10.1.1.1/24
CE2 GigabitEthernet 1/0/0 VLANIF 40 10.1.1.2/24
