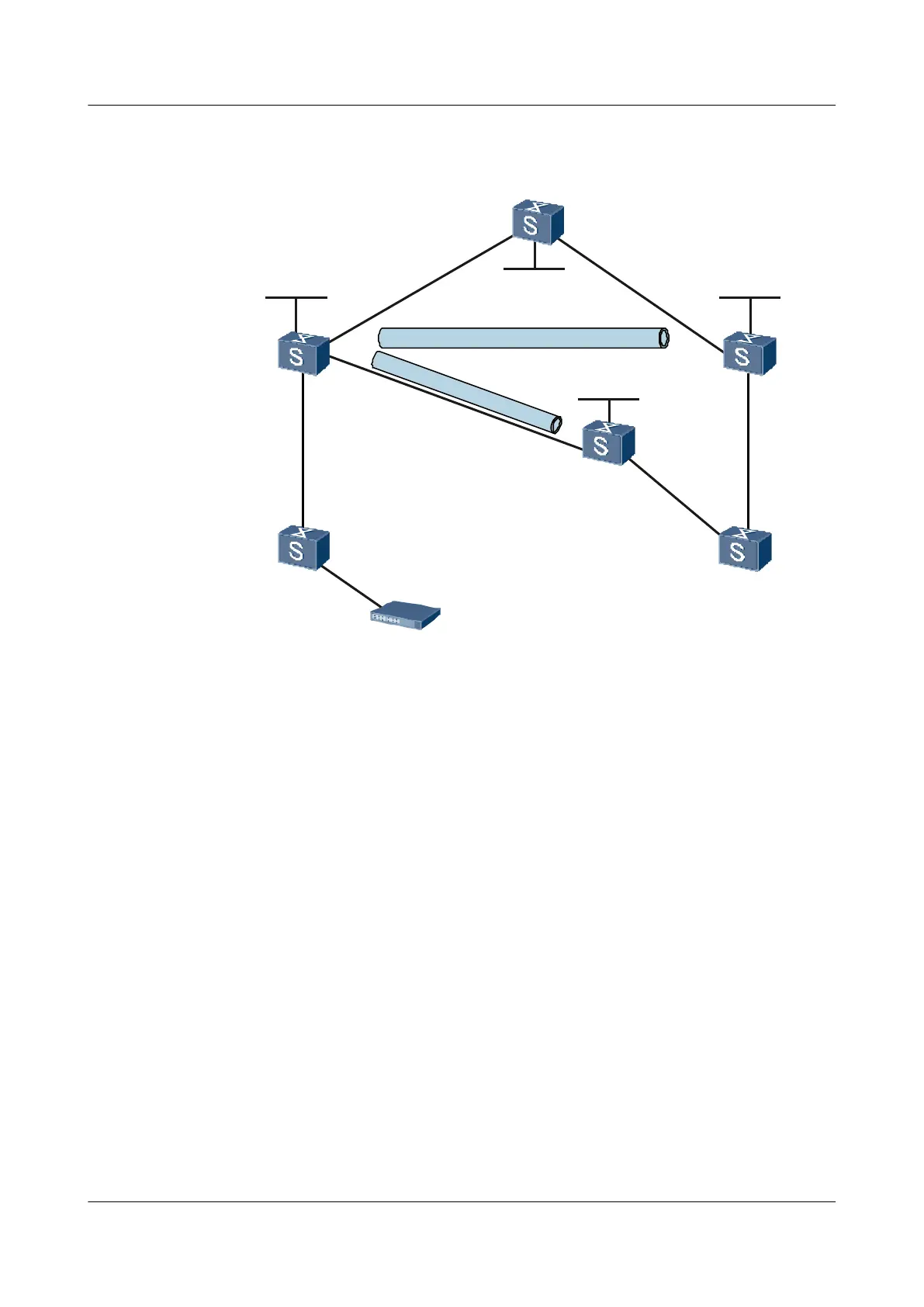

Figure 4-13 Networking diagram for configuring Kompella VLL FRR (asymmetrically
connected CEs)
GE2/0/1 GE2/0/1
PE1
PE2
PE3
P
MPLS LSP
MPLS TE
GE1/0/1
GE1/0/0
GE1/0/0
GE1/0/0
GE1/0/0
GE1/0/0
Loopback1
1.1.1.1/32
Loopback1
2.2.2.2/32
CE1
CE2
Loopback1
3.3.3.3/32
Loopback1
4.4.4.4/32
GE1/0/1
GE2/0/2 GE2/0/1
GE2/0/2 GE2/0/1
P
S9300 Interface VLANIF interface IP address
PE1 GigabitEthernet1/0/0 VLANIF 10 10.1.1.2/30
GigabitEthernet2/0/1 VLANIF 20 100.13.1.1/30
GigabitEthernet2/0/2 VLANIF 40 100.12.1.1/30
Loopback1 - 1.1.1.1/32
PE2 GigabitEthernet1/0/0 VLANIF 50 10.1.2.1/30
GigabitEthernet2/0/1 VLANIF 40 100.12.1.2/30
Loopback1 - 2.2.2.2/32
PE3 GigabitEthernet1/0/0 VLANIF 60 10.1.1.1/30
GigabitEthernet2/0/1 VLANIF 30 100.34.1.2/30
Loopback1 - 3.3.3.3/32
P GigabitEthernet2/0/1 VLANIF 20 100.13.1.2/30
GigabitEthernet2/0/2 VLANIF 30 100.34.1.1/30
Loopback1 - 4.4.4.4/32
CE1 GigabitEthernet1/0/0 VLANIF 10 10.1.1.1/30
GigabitEthernet1/0/0 VLANIF 10 10.1.2.1/30
GigabitEthernet1/0/1 VLANIF 70 10.1.3.1/24
CE2 GigabitEthernet1/0/0 VLANIF 60 10.1.1.2/30
