ospf 1
area 0.0.0.0
network 3.3.3.9 0.0.0.0
network 169.1.1.0 0.0.0.255
#
return
l Configuration file of CE2
#
sysname CE2
#
vlan batch 40
#
interface Vlanif40
ip address 30.1.1.2 255.255.255.0
#
interface GigabitEthernet1/0/0
port link-type trunk
port trunk allow-pass vlan 40
#
return
4.11.7 Example for Configuring the Inter-AS Martini VLL Option
A
Networking Requirements
As shown in Figure 4-10, the Option A scheme is used to establish the inter-AS Martini VLL.
The MPLS backbone in an AS uses IS-IS as the IGP protocol.

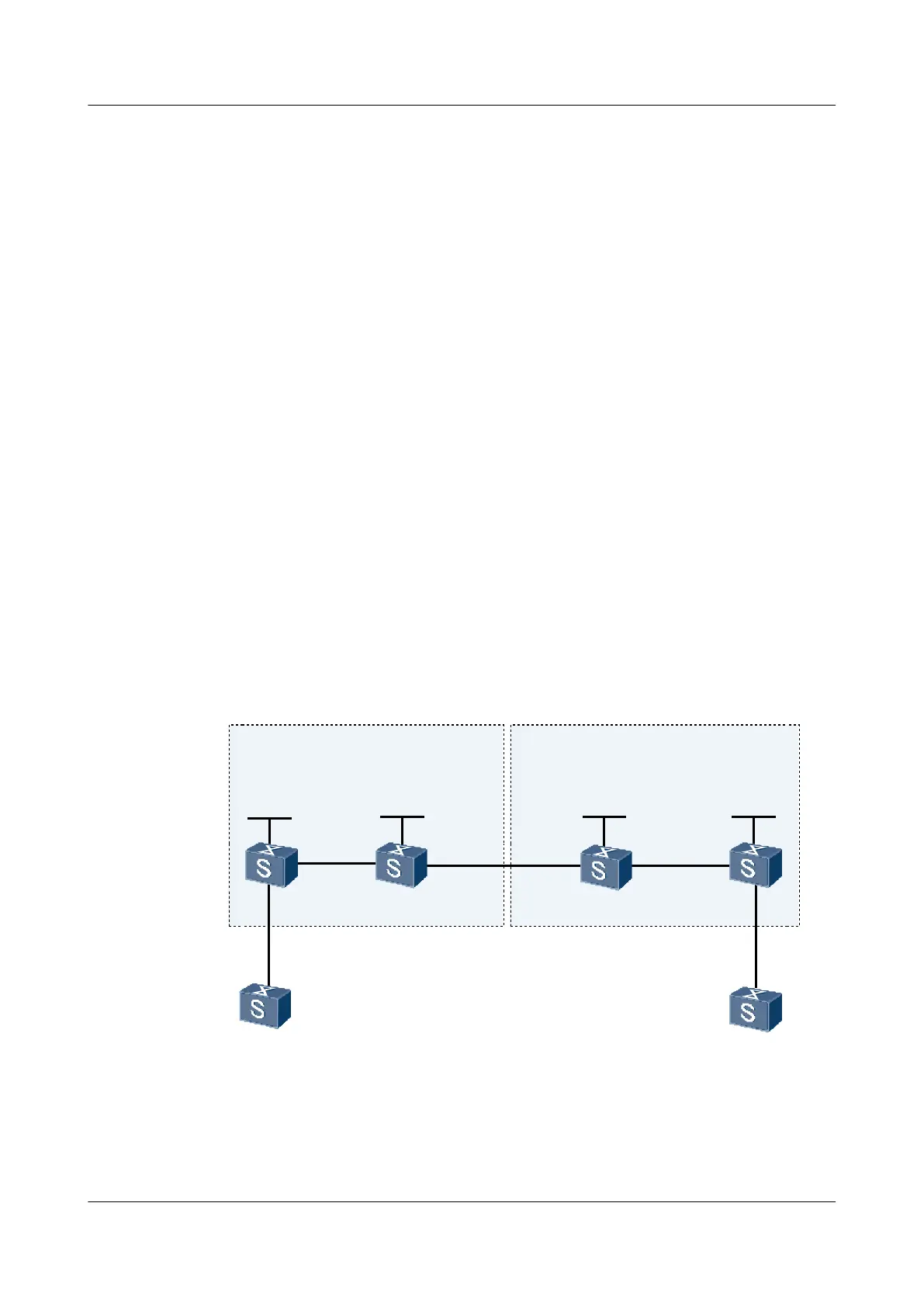

Figure 4-10 Networking diagram for configuring the inter-AS Martini VLL Option A
MPLS backbone
AS 200
Loopback0
3.3.3.9/32
Loopback0
4.4.4.9/32
ASBR -PE2
GE1/0/0
GE1/0/0
GE2/0/0
GE1/0/0 GE1/0/0
GE2/0/0
CE1 CE2
PE2
Loopback0
2.2.2.9/32
Loopback0
1.1.1.9/32
ASBR -PE1
GE1/0/0
GE2/0/0
GE1/0/0
GE2/0/0
PE1
MPLS backbone
AS 100
S9300
Interface VLANIF interface IP address
PE1 GigabitEthernet1/0/0 VLANIF 10 -
GigabitEthernet2/0/0 VLANIF 20 10.1.1.1/24
