Huawei Quidway S9300

#
sysname CE2
#
vlan batch 40
#
interface Vlanif40
ip address 100.1.1.2 255.255.255.0
#
interface GigabitEthernet1/0/0
port link-type trunk
port trunk allow-pass vlan 40
#
return
4.11.4 Example for Configuring a Martini VLL
Networking Requirements
As shown in Figure 4-7, CE1 and CE2 are connected to PE1 and PE2 respectively through
VLANs.
A Martini VLL is set up between CE1 and CE2.

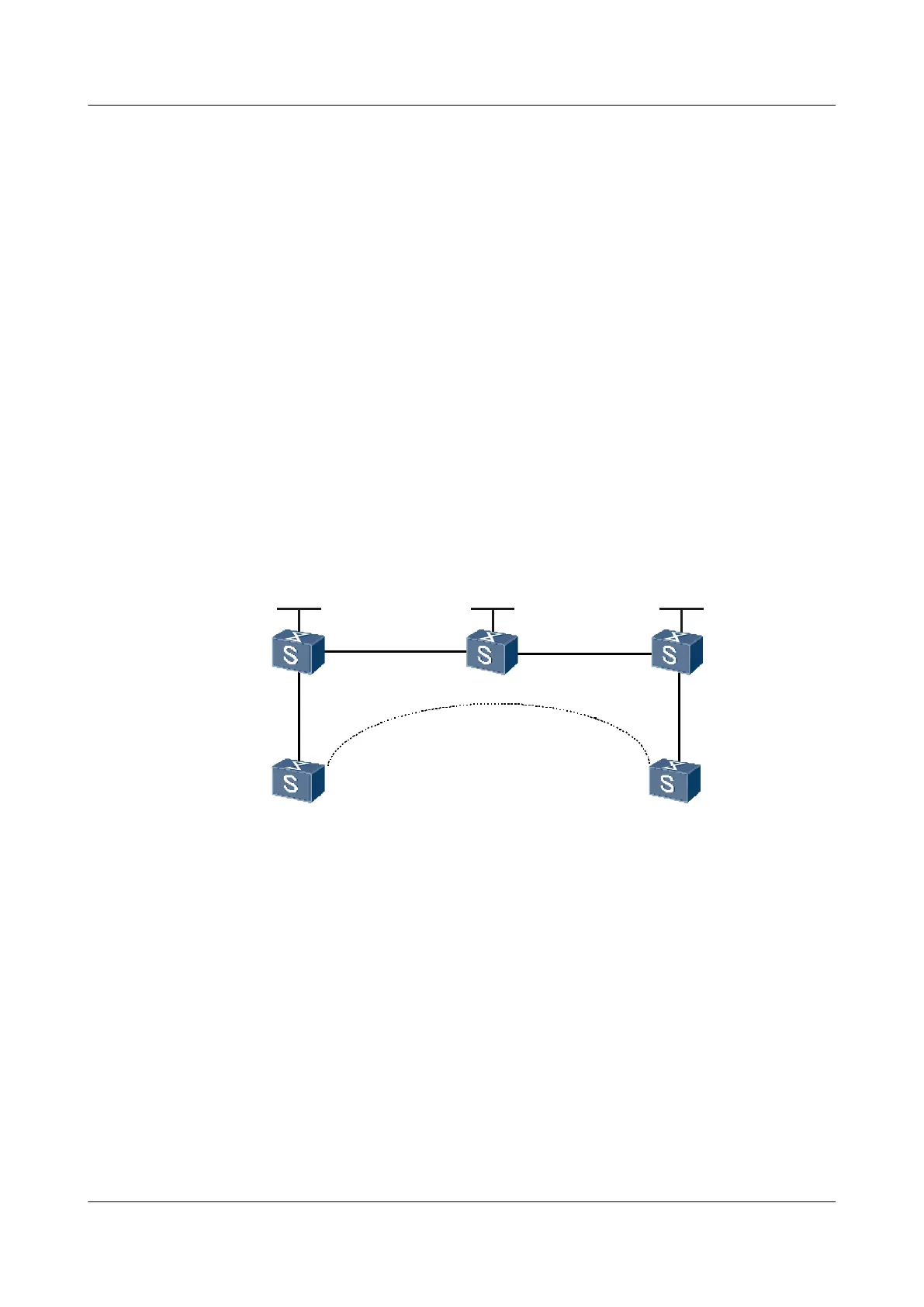

Figure 4-7 Networking diagram for configuring the Martini VLL
Martini
GE 2/0/0
GE 2/0/0
GE 1/0/0
GE 2/0/0
GE1/0/0
P
PE 2PE 1
CE 1
CE 2
GE 1/0/0
GE1/0/0
GE1/0/0
Loopback1
1.1.1.9/32
Loopback1
2.2.2.9/32
Loopback1
3.3.3.9/32
S9300
Interface VLANIF interface IP address
PE1 GigabitEthernet1/0/0 VLANIF 10 -
GigabitEthernet2/0/0 VLANIF 20 10.1.1.1/24
Loopback1 - 1.1.1.9/32
PE2 GigabitEthernet1/0/0 VLANIF 30 10.2.2.1/24
GigabitEthernet2/0/0 VLANIF 40 -
Loopback1 - 3.3.3.9/32
P GigabitEthernet1/0/0 VLANIF 30 10.2.2.2/24
GigabitEthernet2/0/0 VLANIF 20 10.1.1.2/24
Loopback1 - 2.2.2.9/32
CE1 GigabitEthernet1/0/0 VLANIF 10 100.1.1.1/24
