and PE2. The bandwidth of one tunnel is 5 Mbit/s and the bandwidth of the other tunnel is 10
Mbit/s. The CEs in VPNA require 10-Mibt/s constant bandwidth for communication; therefore,
the tunnel with 10-Mbit/s bandwidth is used by VPNA exclusively to ensure the bandwidth. To
use the tunnels more efficiently, VPNB prefers the TE tunnels.

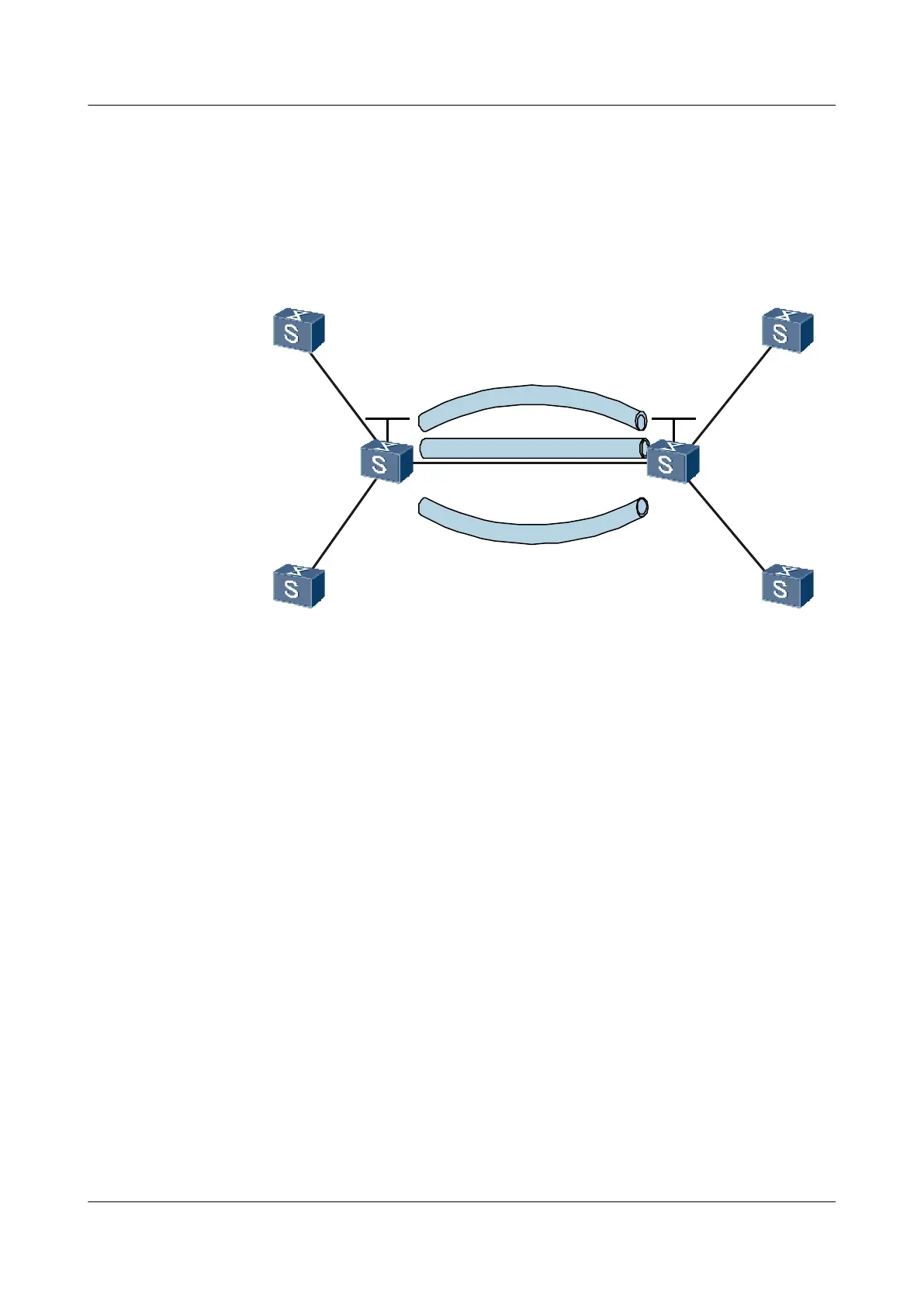

Figure 1-2 Networking diagram for configuring the tunnel policy for the L3VPN
Loopback1
1.1.1.1/32
Loopback1
2.2.2.2/32
GE1/0/2
GE1/0/3
GE1/0/1
GE1/0/2
GE1/0/3
GE1/0/1
VPNA
CE1
VPNB
CE2
PE2
MPLS TE tunnel 1/0/1
LSP
PE1
MPLS TE tunnel 1/0/2
( binding)
GE1/0/3
GE1/0/2 GE1/0/2
VPNA
CE3
VPNB
CE4
GE1/0/3
S9300 Interface VLANIF interface IP address
PE1 GigabitEthernet1/0/1 VLANIF 10 100.1.1.1/30
GigabitEthernet1/0/2 VLANIF 20 10.2.1.2/30
GigabitEthernet1/0/3 VLANIF 30 10.1.1.2/30
Loopback1 - 1.1.1.1/32
PE2 GigabitEthernet1/0/1 VLANIF 10 100.1.1.2/30
GigabitEthernet1/0/2 VLANIF 40 10.4.1.2/30
GigabitEthernet1/0/3 VLANIF 50 10.3.1.2/30
Loopback1 - 2.2.2.2/32
CE1 GigabitEthernet1/0/3 VLANIF 30 10.1.1.1/30
CE2 GigabitEthernet1/0/2 VLANIF 20 10.2.1.1/30
CE3 GigabitEthernet1/0/3 VLANIF 50 10.3.1.1/30
CE4 GigabitEthernet1/0/2 VLANIF 40 10.4.1.1/30
Configuration Roadmap
The configuration roadmap is as follows:
1 VPN Tunnel Management
