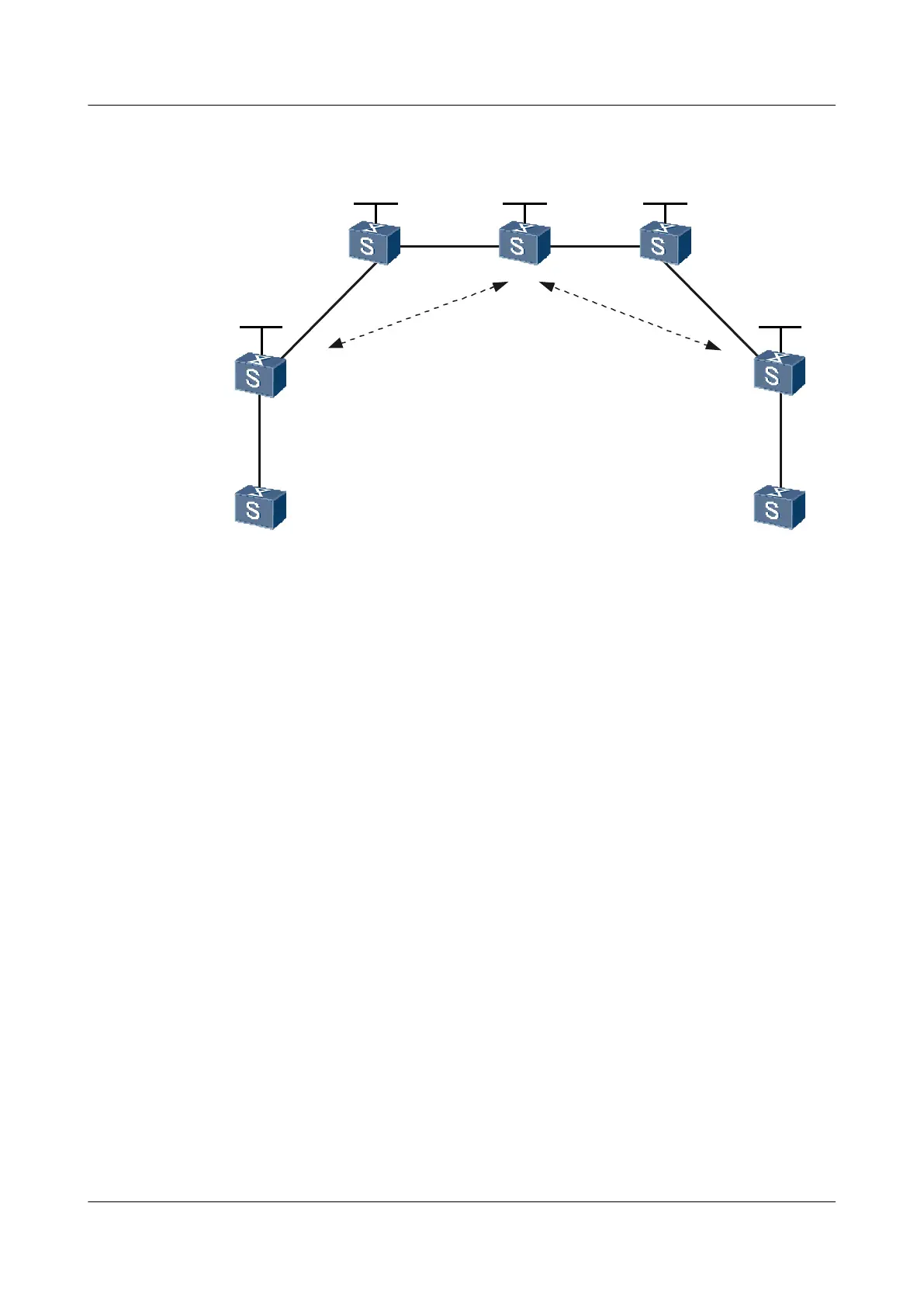

Figure 5-12 Networking diagram for configuring a static MH-PW
Loopback0
1.1.1.9/32
Loopback0
2.2.2.9/32
Loopback0
3.3.3.9/32
Loopback0
4.4.4.9/32
Loopback0
5.5.5.9/32
GE1/0/0
GE1/0/0
GE2/0/0
GE1/0/0
GE2/0/0
GE1/0/0
GE2/0/0
GE1/0/0
GE2/0/0
GE1/0/0
GE1/0/0
GE2/0/0
Static PW
Static PW
CE1
P1
S-PE
P2
CE2
U-PE1
U-PE2
S9300 Interface VLANIF interface IP address
U-PE1 GigabitEthernet1/0/0 VLANIF 10 -
GigabitEthernet2/0/0 VLANIF 20 10.1.1.1/24
Loopback0 - 1.1.1.9/32
U-PE2 GigabitEthernet1/0/0 VLANIF 50 40.1.1.2/24
GigabitEthernet2/0/0 VLANIF 60 -
Loopback0 - 5.5.5.9/32
P1 GigabitEthernet1/0/0 VLANIF 20 10.1.1.2/24
GigabitEthernet2/0/0 VLANIF 30 20.1.1.1/24
Loopback0 - 2.2.2.9/32
P2 GigabitEthernet1/0/0 VLANIF 40 30.1.1.2/24
GigabitEthernet2/0/0 VLANIF 50 40.1.1.1/24
Loopback0 - 4.4.4.9/32
S-PE GigabitEthernet1/0/0 VLANIF 30 20.1.1.2/24
GigabitEthernet2/0/0 VLANIF 40 30.1.1.1/24
Loopback0 - 3.3.3.9/32
CE1 GigabitEthernet1/0/0 VLANIF 10 100.1.1.1/24
CE2 GigabitEthernet1/0/0 VLANIF 60 100.1.1.2/24
5 PWE3 Configuration
Quidway S9300 Terabit Routing Switch
Configuration Guide - VPN
