Huawei Quidway S9300

network 10.2.2.0 0.0.0.255
#
return
l Configuration file of CE2
#
sysname CE2
#
vlan batch 40
#
interface Vlanif 40
ip address 100.1.1.2 255.255.255.0
#
interface GigabitEthernet1/0/0
port link-type trunk
port trunk allow-pass vlan 40
#
return
4.11.5 Example for Configuring a Local Kompella VLL
Networking Requirements
As shown in Figure 4-8, CE1 and CE2 are connected to the same PE through GE interfaces.
A local Kompella VLL is set up between CE1 and CE2.

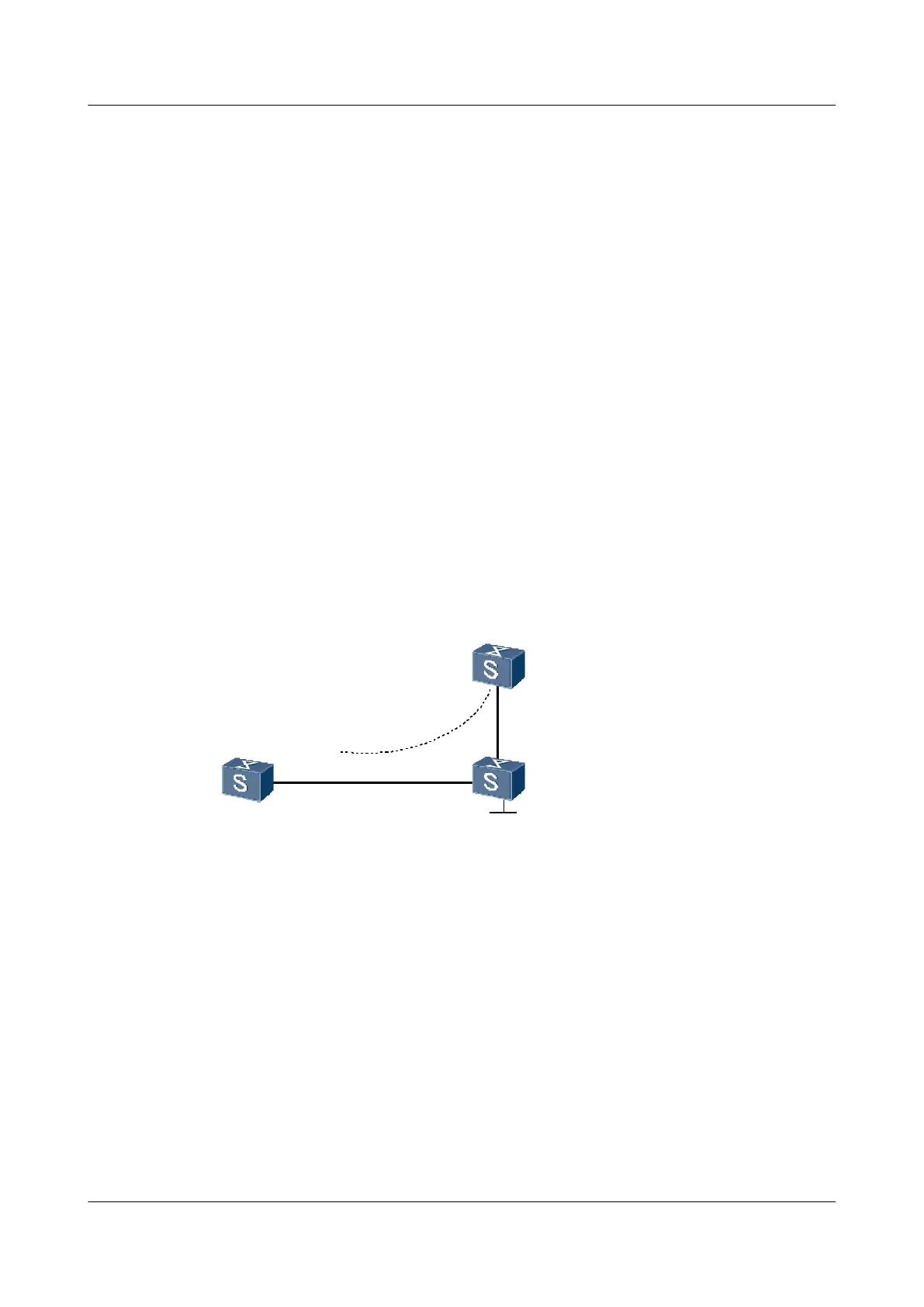

Figure 4-8 Networking diagram for configuring a local Kompella VLL
CE1
CE2
PE
GE1/0/0
GE2/0/0
GE1/0/0
GE1/0/0
Loopback1
1.1.1.9/32
Kompella local connection
S9300
Interface VLANIF interface IP address
PE GigabitEthernet1/0/0 VLANIF 10 -
GigabitEthernet2/0/0 VLANIF 20 -
Loopback1 - 1.1.1.9/32
CE1 GigabitEthernet1/0/0 VLANIF 10 30.1.1.1/24
CE2 GigabitEthernet1/0/0 VLANIF 20 30.1.1.2/24
Configuration Roadmap
The configuration roadmap is as follows:
