7.9.5.1 Making the electrical connection for remote LOAD contact
Machine (example)

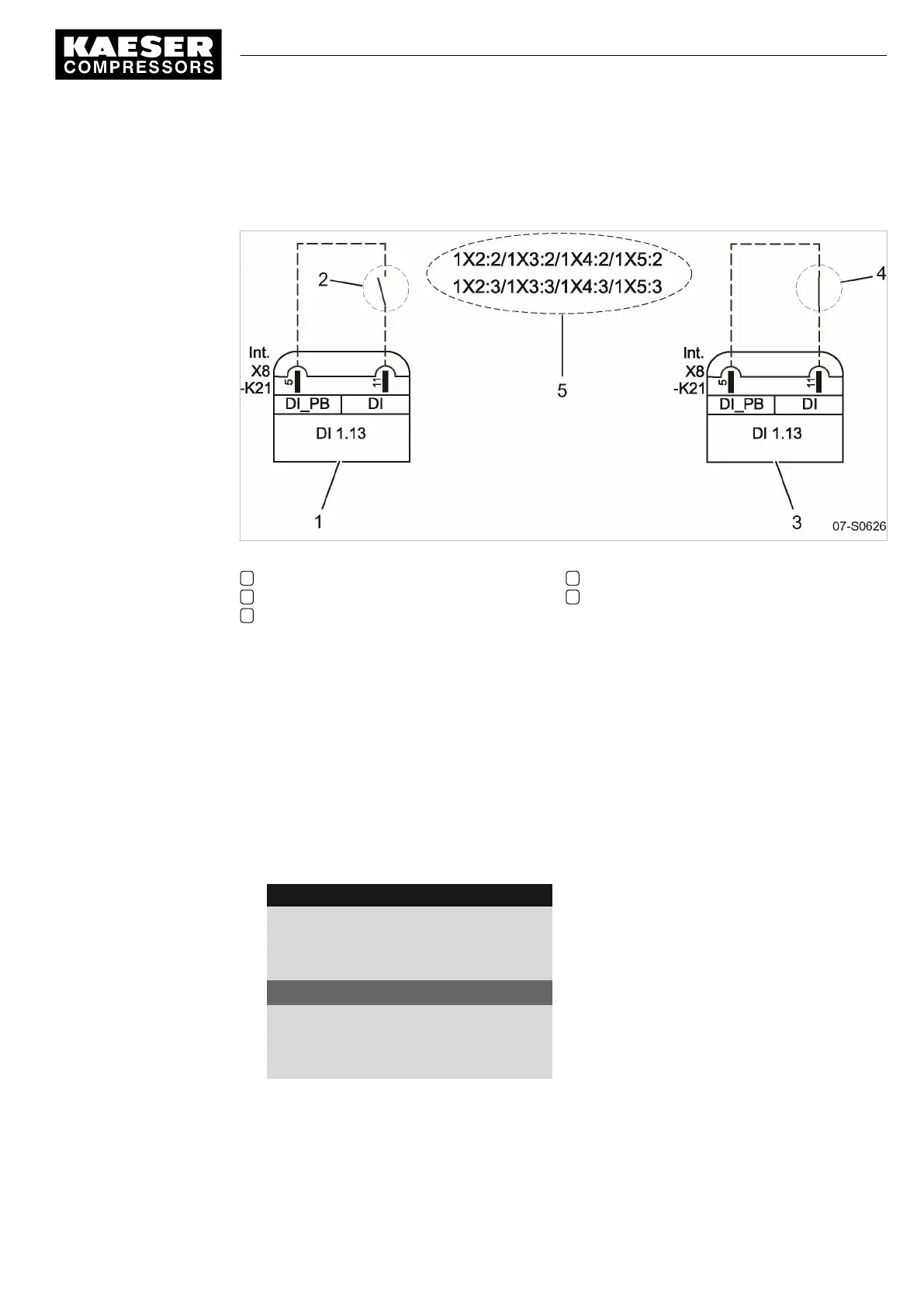

Fig. 32 LOAD remote contact
1 Electrical connection DI 1.12
2 LOAD remote contact open (IDLE)
3 Electrical connection DI 1.12
4 LOAD remote contact closed (LOAD)
5 SIGMA AIR MANAGER BASIC contacts
➤ Making the electrical connection for DI 1.13 according to the diagram.
7.9.5.2 Setting the remote LOAD contact operating mode and assigning the input for LOAD remote contact
Precondition Access level 2 is activated.
The < Configuration ➙ Pressure control ➙ Load control > menu is selected.
Set the LOAD remote contact operating mode
1. Press «UP» or «DOWN» repeatedly until Remote mode is displayed as the active line.
2. Press «Enter» to switch into setting mode.
The Remote operation display flashes.
8 9 p s i 0 8 : 1 5 1 7 6 ° F
5.2.3 Load control
Menu
Local mode
·········
Remote mode : Load RC
Active line, current operating mode
Key remote : ☐
·········
3. Use «UP» to select the LOAD remote contact operating mode.
4. Press «Enter» to accept the setting.
Result The remote LOAD contact operating mode is set.
